PVE electrohydraulic actuators

Designed for integration

Get fast, accurate and intelligent operation with our plug and perform PVE actuators – under any operating and environmental conditions.

The portfolio includes more than 50 different versions of our PVE actuators – from simple analog on/off actuators to SIL 2 certified CAN bus actuators. Our PVED CAN bus actuators are designed for integration in J1939/ISOBUS and CANopen systems.

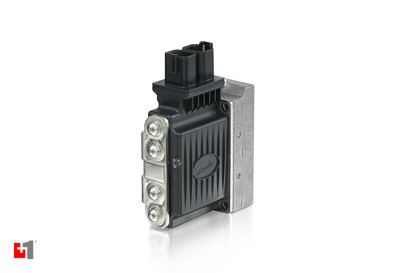

Analog electrohydraulic actuators
Analog electrohydraulic actuators
  • PVEO, PVEA, PVEM, PVEH, PVES S7
  • PVEP S4
  • PVHC
Digital CAN bus electrohydraulic actuators
Digital CAN bus electrohydraulic actuators
  • PVEO-CI, PVEA-CI S6
  • PVED-CC S4 and S5
  • PVED-CX S4

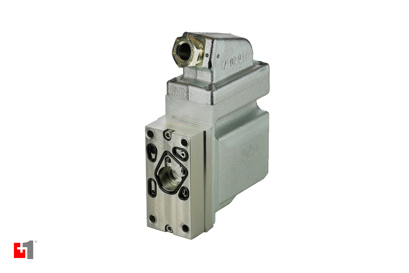

Special application electrohydraulic actuators
Special application electrohydraulic actuators
  • PVEO-EX, PVEH-EX, PVES-EX

Machine benefits

  • Energy efficient solutions for any application with PVE hydraulic and voltage control principles
  • Easy implementation into new and existing systems with multi-voltage power supply and wide range of performance, connector and control principle variants
  • Easy to comply to on-road legislation with E-mark certification acc. to UNECE regulation no. 10
  • Increased diagnostics with embedded event monitoring and integrated LED indicating functional status



Product features

  • Wide range of performance variants to meet the requirements of any application and function
  • Increased energy efficiency with low power and oil consumption
  • Increased immunity to viscosity, temperature and voltage variations with closed-loop control variants
  • Increased diagnostic coverage with dual demodulator spool position monitoring principle
  • Increased environmental robustness with superior corrosion protection and ambient temperature rating of -40°C to +90°C [-40°F to +194°F]
  • Improved EMC robustness with high frequency (HF) immunity field strength of 100 V/m acc. to EN 61000-6-2 and 150 V/m acc. to ISO 13766
  • IP65 rated DIN connectors, IP66 rated AMP connectors and IP67 rated Deutsch connectors
  • Optimized control principle compatibility with ratiometric voltage control, fixed 12 VDC and 24 VDC voltage control, fixed 0-10 VDC voltage control, PWM voltage control and PWM current control variants
  • Multi-voltage 11-32 VDC, fixed 12 VDC and 24 VDC voltage supply variants

Machine benefits

  • Speed up time to market with SIL 2 certified products
  • A build-in surveillance monitors both the PVEs and the valve performance
  • Plug and perform capability
  • Easy setup and installation speeds up time to market
  • User selectable, progressive flow characteristics in our digital PVED CAN bus actuators
  • Advanced built-in diagnostic functions



Product features

  • PVED-CX is SIL 2 certified according to IEC 61508
  • PVED-CC is PLUS+1® compliant, which enables OEMs to change PVED-CC parameters in the PLUS+1® GUIDE service tool.
  • CANopen protocol (CiA 3.01 and CiA 4.08)
  • J1939/ISOBUS CAN control
  • Advanced performance settings
  • Environmental robustness identical to analog PVE
  • Power consumption <9W
  • Increased energy efficiency with low power and oil consumption
  • Increased immunity to viscosity, temperature and voltage variations with closed-loop control variants
  • Optimized control principle compatibility with ratiometric voltage control, fixed 12 VDC and 24 VDC voltage control, fixed 0-10 VDC voltage control and PWM voltage control. Multi-voltage 11-32 VDC, fixed 12 VDC and 24 VDC voltage supply variants
