EV250BW 10-22 solenoid valves

EV250BW 10-22, assisted lift operated solenoid valves for drinking water

EV250BW 10-22 is an assisted lift operated 2/2-way solenoid valve. The valve body is made of ECO brass and uses next-generation EPDM sealings. The valve is a compact valve used for process water with low differential pressure, e.g. process inlet and drinking water applications where drinking water approvals as RISE, SINTEF, ACS, PZH and WRAS are required.

Features and benefits

Designed for drinking water

Clip-on coil

Flow range KV 2,5 - 7 m³/h

Differential pressure 0 - 10 bar

Media temperature range 0 – 90 °C

Ambient temperature: Up to 80 °C

Coil enclosure: Up to IP67

Thread connections: G3/8, G1/2, G3/4 & G1

Viscosity: Up to 50 CST

Water hammer damped

Approvals and certificates

Valves are certified by RISE, notified body 1002. Valid in Denmark and Sweden. In accordance with Boverket Building Regulations (BBR 21, 2014-06-17) Certificate number SCO155-18.

Valves are certified by SINTEF. Valid in Norway. In accordance with NKB Product rules nr. 13, pkt. 3.2 – 3.6 -NT VVS 100, pkt. 6.4.2 & 6.4.8 -EN ISO 6509.

Inspection by DTI.

Valves are certified by Carso according to ACS guidelines, Circulaire 2002/571.

Hygenic certificate B-BK-60210-1275/19. Issued by Polish National Institute of Public health (PZH).

Valves are certified by WRAS – tested by NSF International in Wales

Wetted materials in accordance with 4MSI (member states Germany (DVGW – W270), Holland (KTW), France (ACS), UK (WRAS) and Denmark (RISE) .

In accordance with:

  • Low Voltage Directive 2014/35/EU
  • EN60730-1
  • EN60730-2-8
  • Pressure Equipment Directive 2014/68/EU

RoHS Directive 2011/65/EU without exemption 6c

The clever choice - read more!

The clever choice - read more!

Read more about the portfolio of solenoid valves for drinking water and find an overview of the extensive product program in this brochure.

Download brochure

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet Solenoid valve type EV250BW Swedish Multiple 29 Dec, 2021 8.2 MB .pdf
Data sheet Solenoid valve Type EV250BW Spanish, Castilian Multiple 29 Dec, 2021 8.2 MB .pdf
Data sheet Solenoid valve Type EV250BW German Multiple 29 Dec, 2021 8.2 MB .pdf
Data sheet Solenoid valve Type EV250BW Polish Multiple 29 Dec, 2021 8.2 MB .pdf
Data sheet Solenoid valve Type EV250BW Lithuanian Multiple 22 Jun, 2023 9.2 MB .pdf
Data sheet Solenoid valve Type EV250BW Dutch, Flemish Multiple 12 Jun, 2023 9.2 MB .pdf
Data sheet Solenoid valve Type EV250BW French Multiple 18 May, 2023 9.3 MB .pdf
Data sheet Solenoid valve Type EV250BW Hungarian Multiple 07 Jul, 2023 9.4 MB .pdf
Data sheet Solenoid valve Type EV250BW English Multiple 27 Mar, 2024 9.2 MB .pdf
Data sheet Solenoid valve Type EV250BW Danish Multiple 29 Dec, 2021 8.2 MB .pdf

Approvals

Approvals
Type Name Language Valid for Updated Download File type
Hygienic Certificate CARSO 24 ACC LY 130 French Multiple 27 Nov, 2024 240.1 KB .pdf
Hygienic Certificate PZH B-BK-60110-0524-2023 Polish Multiple 27 Nov, 2024 310.4 KB .pdf
Hygienic Certificate RISE SC0155-18 English; Swedish Multiple 27 Nov, 2024 194.2 KB .pdf
Hygienic Certificate WRAS 2003353 English Multiple 27 Nov, 2024 125.4 KB .pdf

Support

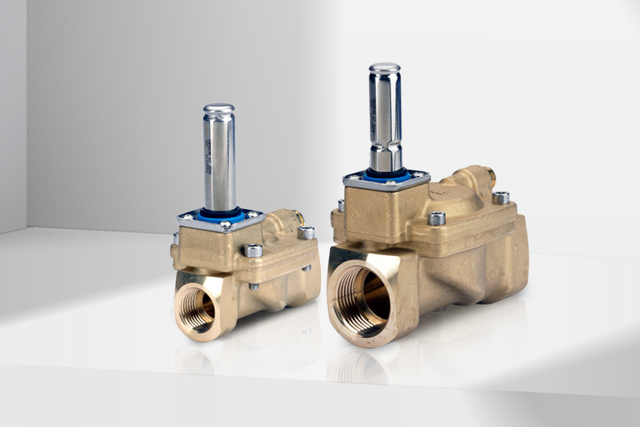

ventiler
FAQ for solenoid valves

Find answers to the most frequent troubleshooting questions for normally closed and normally open solenoid valves.

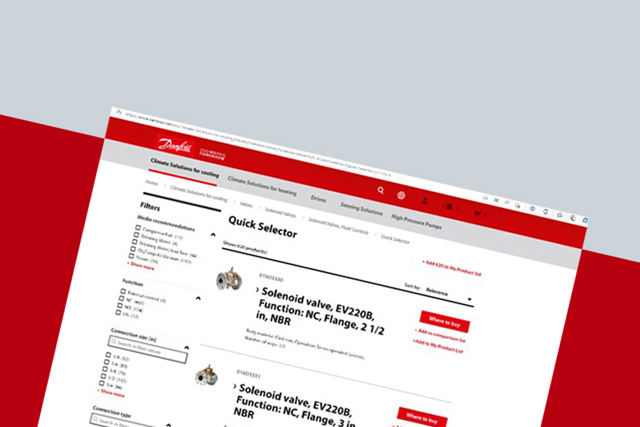

Quick Selector for solenoid valves
Quick Selector for solenoid valves, fluid controls

Find the most suitable solenoid valve and coil for your project from the Danfoss product portfolio.

Related products

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

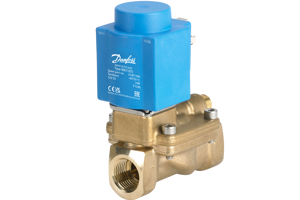

    EV220BW/EV228BW 15-50, indirect servo-operated 2/2-way solenoid valves
