EV220BW 15-50 solenoid valve

EV220BW 15-50 is an indirect servo-operated 2/2-way solenoid valve. The valve body is made of ECO brass or stainless steel and uses next-generation EPDM sealings.

The valve has a built-in pilot filter, which makes it the ideal choice for water inlet and drinking water applications where RISE, SINTEF, ACS, WRAS or PZH approvals are required.

EV220BW functions are NC and NO. It is water hammer damped and comes with enclosures up to IP67, which ensures optimal performance even under critical working conditions.

Features and benefits

Clip-on coil

Flow range for water in Kv: 4 – 40 m³ / h

Differential pressure: 0.3 – 10 bar

Media temperature from -30°C – 90°C

Ambient temperature: Up to 80 °C

Coil enclosure: IP67

Thread connections: From G 1/2 – G 2

DN 15 – 50

Water hammer damped

Built-in filter

Body material in ECO brass (Lead free < 0.1 %) or stainless steel

Next-generation EPDM sealings recommended for drinking water

Approvals and certificates

  • Valves are certified by RISE, notified body 1002. Valid in Denmark and Sweden. In accordance with Boverket Building Regulations (BBR 21, 2014-06-17) Certificate number SCO155-18
  • Valves are certified by SINTEF. Valid in Norway. In accordance with NKB Product rules nr. 13, pkt. 3.2 – 3.6 -NT VVS 100, pkt. 6.4.2 & 6.4.8 -EN ISO 6509
  • Inspection by DTI
  • Valves are certified by Carso according to ACS guidelines, Circulaire 2002/571.
  • Hygienic certificate B-BK-60210-1275/19. Issued by Polish National Institute of Public health (PZH).
  • Valves are certified by WRAS – tested by NSF International in Wales
  • Wetted materials in accordance with 4MSI (member states Germany (DVGW – W270), Holland (KTW), France (ACS), UK (WRAS) and Denmark (RISE)
  • In accordance with:
    • Low Voltage Directive 2014/35/EU
    • EN60730-1
    • EN60730-2-8
  • Pressure Equipment Directive 2014/68/EU
  • RoHS Directive 2011/65/EU without exemption 6c

Documents

Documents
Type Name Language Valid for Updated Download File type
Brochure Drinking water overview German Germany 03 May, 2023 730.0 KB .pdf
Brochure Drinking water overview English Multiple 07 Feb, 2024 940.9 KB .pdf
Brochure Drinking water overview Swedish Multiple 14 Feb, 2024 845.0 KB .pdf
Brochure Drinking water overview Dutch, Flemish Netherlands 02 Jun, 2023 1.2 MB .pdf
Brochure Drinking water overview French France 28 Jun, 2023 691.2 KB .pdf
Brochure Drinking water overview Norwegian Bokmål Norway 07 Feb, 2024 856.4 KB .pdf
Brochure Drinking water overview Danish Multiple 14 Feb, 2024 943.5 KB .pdf
Brochure Drinking water valves Finnish Finland 07 Feb, 2024 862.2 KB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Polish Multiple 09 Feb, 2023 12.3 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Danish Multiple 12 Apr, 2024 11.2 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW French Multiple 02 Jun, 2023 12.3 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Lithuanian Multiple 22 Jun, 2023 12.8 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Dutch, Flemish Multiple 17 May, 2023 12.3 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Italian Multiple 29 Dec, 2021 11.3 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Spanish, Castilian Multiple 29 Dec, 2021 11.3 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW English Multiple 22 Jan, 2024 12.1 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW German Multiple 27 Mar, 2023 12.2 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Hungarian Multiple 07 Jul, 2023 12.2 MB .pdf
Data sheet Solenoid valves for drinking water, Types EV220BW and EV228BW Swedish Multiple 12 Apr, 2024 12.1 MB .pdf

Approvals

Approvals
Type Name Language Valid for Updated Download File type
Hygienic Certificate CARSO 24 ACC LY 130 French Multiple 16 Oct, 2024 240.1 KB .pdf
Hygienic Certificate PZH B-BK-60110-0524-2023 Polish Multiple 16 Oct, 2024 310.4 KB .pdf
Hygienic Certificate RISE SC0155-18 English; Swedish Multiple 16 Oct, 2024 194.2 KB .pdf
Hygienic Certificate WRAS 2104039 English Multiple 16 Oct, 2024 119.5 KB .pdf
Hygienic Certificate WRAS 2204055 English Multiple 16 Oct, 2024 119.7 KB .pdf
Hygienic Certificate WRAS 2205026 English Multiple 16 Oct, 2024 119.8 KB .pdf
Hygienic Certificate WRAS 2303017 English Multiple 16 Oct, 2024 125.7 KB .pdf
Hygienic Certificate WRAS 2305064 English Multiple 16 Oct, 2024 125.2 KB .pdf

Support

ventiler
FAQ for solenoid valves

Find answers to the most frequent troubleshooting questions for normally closed and normally open solenoid valves.

Quick Selector for solenoid valves
Quick Selector for solenoid valves, fluid controls

Find the most suitable solenoid valve and coil for your project from the Danfoss product portfolio.

Related products

  • if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

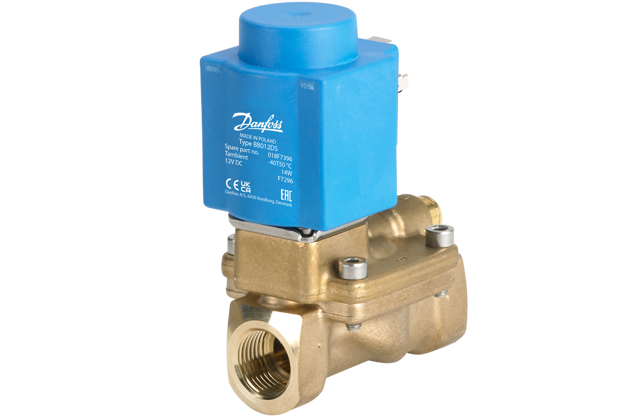

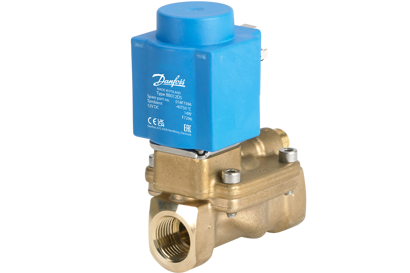

    EV228BW 15-50, indirect servo-operated 2/2-way solenoid valve
