Servo-operated solenoid valves for multiple applications

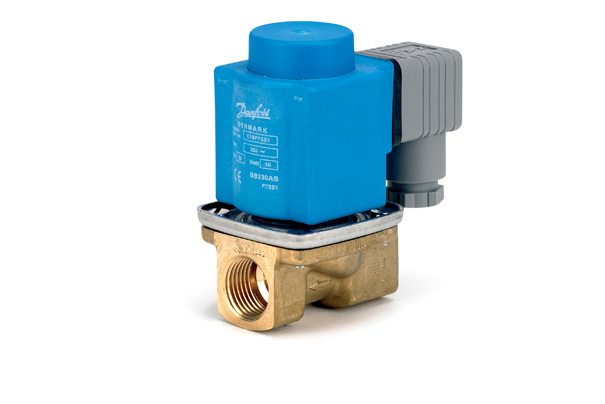

EV220B 6-22 is a direct servo-operated 2/2-way solenoid valve program with connections from 1/4" to 1". This program is especially for OEM applications demanding a robust solution and moderate flow rates.

EV220B 15–50 is a universal indirect servo-operated 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.

Built-in pilot filter as standard, adjustable closing time and enclosures up to IP67 ensures optimal performance even under critical working conditions.

EV220B 65 - 100 is a 2/2-way solenoid valve program for use in robust industrial applications, demanding high flow rates. The valve is designed with cast iron valve body and flanged connection. Water-hammer damped design and built-in pilot filter ensures a reliable operation.

Features and benefits

EV220B 6-22 - Danfoss
EV220B 6-22
  • For water, oil, compressed air and similar neutral media
  • Flow range from 0.2 – 19 m³/h
  • Differential pressure from 0.1 – 20 bar
  • Media temperature from -30 – 100 °C
  • Ambient temperature: Up to 80 °C
  • Coil enclosure: Up to IP67
  • Thread connections: From G ¼ – G 1
  • DN 6 – 22
  • Viscosity: Up to 50 cSt
  • Brass version NC and NO
  • DZR brass version NC
  • FKM and EPDM
  • Also available with NPT thread
EV220B 15-50 - Danfoss
EV220B 15-50
  • For water, steam, oil, compressed air and non-flammable gases
  • Flow range for water: 1.3 – 160 m³/h
  • Differential pressure: 0.3 – 16 bar
  • Media temperature from -30 – 140 °C
  • Ambient temperature: Up to 80 °C
  • Coil enclosure: Up to IP67
  • Thread connections: From G ½ – G 2
  • DN 15 – 50
  • Viscosity: Up to 50 cSt
  • Water hammer damped
  • Built in filter for protection of pilotsystem
  • Adjustable closing time available
  • EV220B NC and NO brass version for neutral liquids and non-flammable gases
  • EV220BD NC DZR version for neutral and slightly aggressive liquids and non-flammable gases
  • EV220BSS NC Stainless steel version for neutral and aggressive liquids and non-flammable gases
  • Also available with NPT thread
EV220B 65-100 - Danfoss
EV220B 65-100
  • For water and similar neutral media
  • Flow range for water: 25 – 400 m³/h
  • Ambient temperature: Up to 80 °C
  • Differential pressure: Up to 10 bar
  • Viscosity: Up to 50 cSt
  • Coil enclosure: Up to IP67
  • Flange connections: 2 1/2, 3 and 4”
  • Water hammer damped
  • Built-in filter for protection of pilot system
  • Seal material: EPDM and NBR
Solenoid valve selector - Danfoss

Find the right valves

The tool is intended to make it easy for installers and end-users to specify the correct industrial solenoid valves for a range of standard applications.

Go to the valve selector

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 Chinese (CN) Multiple 07 Oct, 2024 20.9 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 French Multiple 07 Oct, 2024 20.8 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 Polish Multiple 07 Oct, 2024 20.9 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 Spanish, Castilian Multiple 07 Oct, 2024 20.8 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 Italian Multiple 07 Oct, 2024 20.8 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 Portuguese Multiple 07 Oct, 2024 20.8 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves EV220B 15-50 German Multiple 07 Oct, 2024 20.9 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 English Multiple 07 Oct, 2024 20.6 MB .pdf
Data sheet Servo-operated 2/2-way solenoid valves type EV220B 65-100 Polish Multiple 10 Aug, 2020 2.3 MB .pdf
Data sheet Solenoid valve Type EV220B English Multiple 05 Dec, 2024 14.8 MB .pdf
Data sheet Solenoid valves Type EV220B English Multiple 17 Feb, 2023 11.1 MB .pdf
