Maximum flexibility

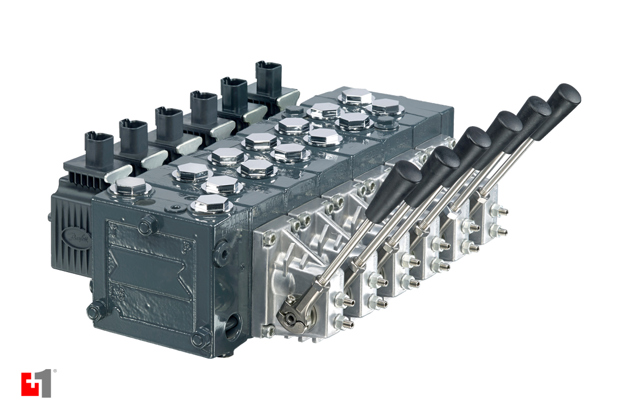

PVG 32 is designed for maximum flexibility. Proven PVG technology that saves you time. No matter which combination of valves is specified, the compact, external dimensions of the valve remain unchanged. Advanced electronic control can be achieved with our PVE electrohydraulic actuators.
Load-sensing
By using PVG load-sensing technology in combination with a variable displacement pump, it’s possible to achieve a significant reduction in energy loss. PVG valves also reduce heat generation and increase efficiency and power density, which helps OEMs to meet the challenges posed by new diesel engine emissions legislation.
OEM and machine benefits
Modular design, providing a wide range of configuration possibilities
Load-independent flow control for precise operation and improved productivity
Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system life
Product features
Configurable as advanced electrically controlled proportional valve as well as load sensing directional control valve
Prevention against work port pressure build up
Individual work port pressure setting
Zero-leakage work modules
Open center and closed center versions available

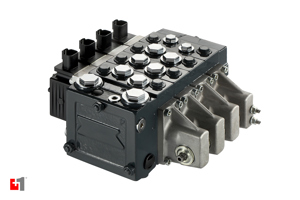

Modular design, which can be combined with PVG 100, PVG 120, PVG 16 and PVG 128/256.
Ensure safety compliance with Danfoss
Combining your PVG with PVSK and PVED-CX will provide you with a SIL 2 certified solution.
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|

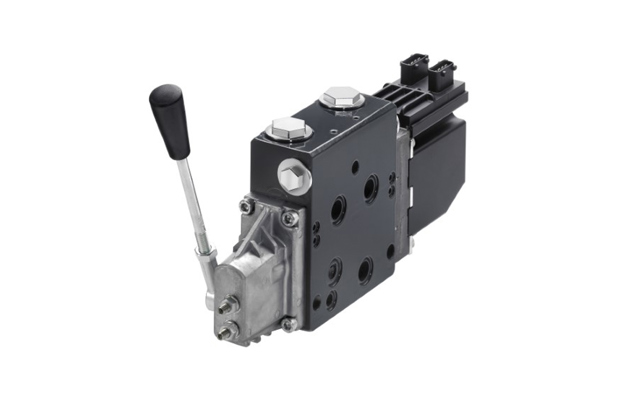

Data sheet | PVBM Meter-in Meter-out Transmission Module Data Sheet | English | Multiple | 10 Mar, 2015 | 1.8 MB | |
User guide | PVG 32 Load Independent Proportional Valve Technical Information | Portuguese | Brazil | 30 Jun, 2015 | 6.0 MB | |
User guide | PVG 32 proportional valve group technical information | Japanese | Japan | 14 Nov, 2024 | 18.7 MB | |
User guide | PVG 32 proportional valve group technical information | English | Multiple | 10 Jul, 2024 | 16.2 MB | |
User guide | PVG 32 Proportional Valve Group Technical Information | French | Multiple | 14 Jul, 2021 | 12.3 MB | |
User guide | PVG 32 Proportional Valve Group Technical Information | Chinese (CN) | Multiple | 21 Feb, 2022 | 13.7 MB | |
User guide | PVG 32 Proportional Valve Group Technical Information | German | Multiple | 08 Jul, 2021 | 12.3 MB | |
User guide | PVG 32 Proportional Valve Group Technical Information | Italian | Multiple | 08 Jul, 2021 | 12.3 MB | |
User guide | PVG 32 Proportional Valve Group Technical Information | Japanese | Multiple | 14 Nov, 2024 | 17.6 MB | |
User guide | PVSK Module with Integrated Diverter Valve and P-disconnect Function Technical Information Manual | English | Multiple | 09 Mar, 2015 | 3.1 MB | |
User guide | PVSK Module with Integrated Diverter Valve and P-disconnect Function Technical Information Manual | Chinese (CN) | China | 09 Mar, 2015 | 1.3 MB |
