One module - many possibilities

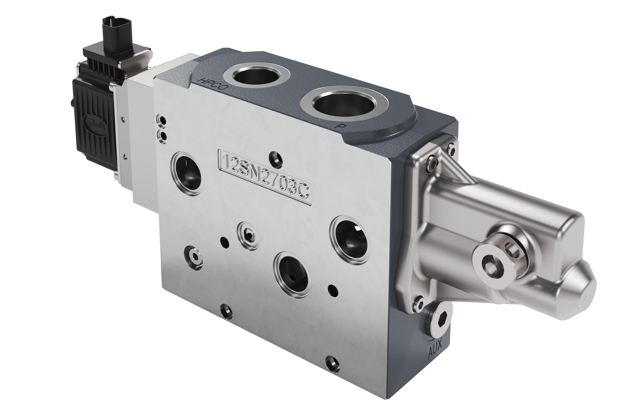

The PVSKM full flow cut-off valve is developed to comply with functional safety standards. PVSKM is a cost-effective way to implement a redundant hydraulic architecture for category 2 safety functions.
The full flow cut off valve for PVG 128/256
Enabling a CAT 2 system according to ISO 13849 enhancing functional safety capabilities in the valve stack.
Divert pump oil supply to additionally connected vales working in parallel through P2 port or HPCO port.
Optional Aux function to control overcenter valves / brakes / charge pressure for piston motors / lubrication circuit via the Aux port.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| User guide | PVG 128 and 256 proportional valve group technical information | English | Multiple | 02 Jul, 2024 | 8.5 MB | |
| User guide | PVG 128 and 256 Proportional Valve Group Technical Information | Chinese (CN) | Multiple | 21 Feb, 2022 | 8.9 MB | |
| User guide | PVG 128 and 256 Proportional Valve Group Technical Information | French | France | 20 Jan, 2020 | 8.6 MB | |
| User guide | PVG 128 and 256 Proportional Valve Group Technical Information | German | Germany | 17 Jan, 2019 | 8.1 MB | |
| Data sheet | PVSKM 128 256 Data Sheet | English | Multiple | 11 Mar, 2025 | 647.9 KB |
