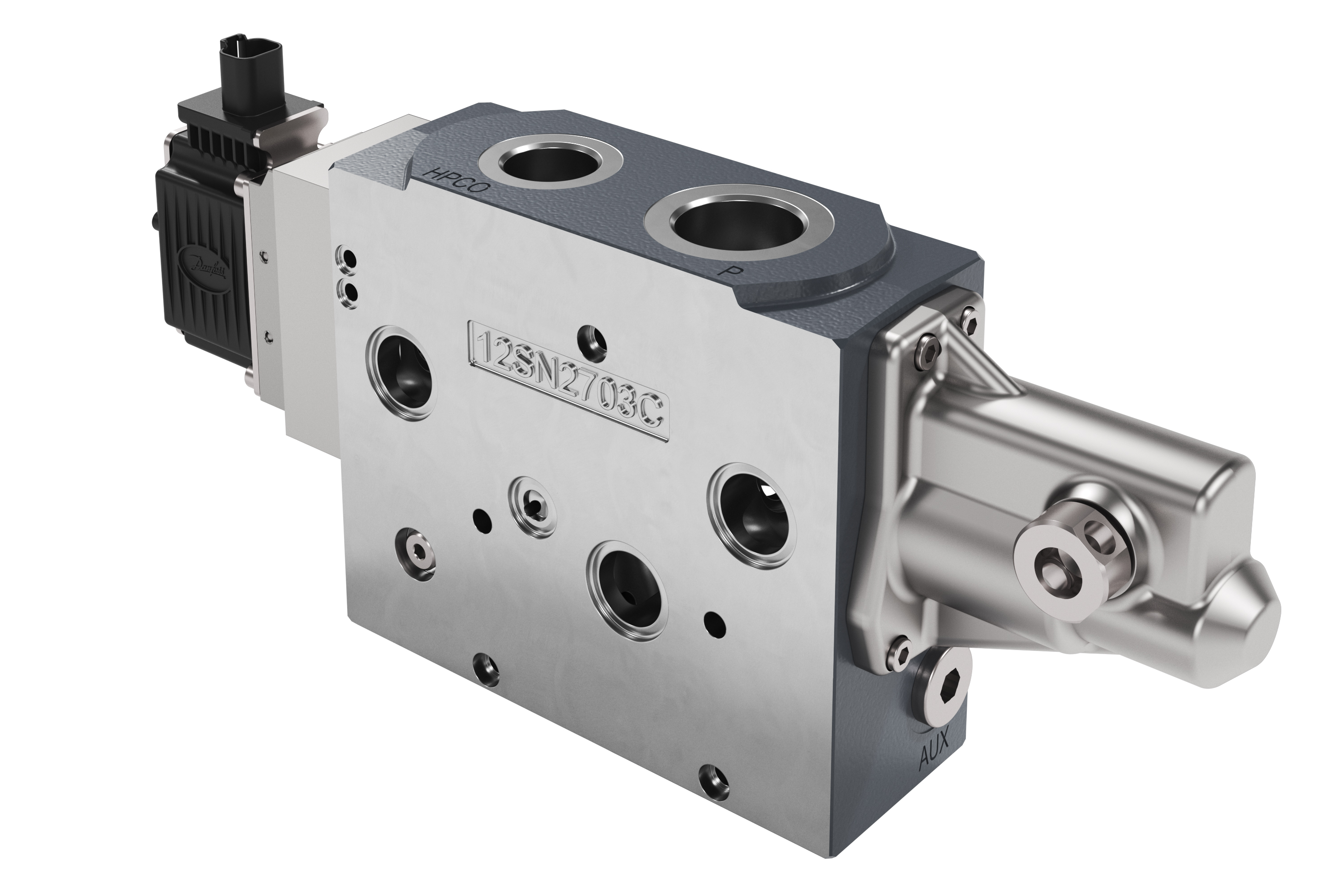

PVG 128/256 proportional valves

  • Overview
  • Documents
  • Related products
  • Related applications

Modularity and efficiency

For the most demanding applications, only the highest flow and the highest pressure will do.

The PVG 128/256 are built to take control with up to 500 l/min per section supplied with up to 1200 l/min (300 US gal/min) pump flow.

Rock-solid control and optimum safety are more critical than ever when it comes to the biggest applications and the heaviest tasks.

This new proportional (pre-compensated) load-sensing valve series can easily be built together with PVG 32 and PVG 16 making it easy to build a valve that is adapted to the flow needs of the most demanding application.

Application opportunities

Go with our PVG 128/256 and optimize work functions on cranes, mining, drill rigs and marine applications like winches and bow thruster.

Machine benefits

Smooth load-independent flow control for optimum productivity and precise operation

Energy-efficient load-sensing technology for maximum safety and a long system life

CAN bus control for lower installation cost and increased diagnostics

Product features

Optimized for lower pressure drop and higher efficiency

Compact sectional platform solution for easy integration with PVG 16 and PVG 32

Compact design, easy installation and serviceability

Individual LS A/B relief valves ensure energy efficient, safe and reliable operation

Mechanical actuation as default on all valve sections

Hydraulic actuation

Electrohydraulic actuators PVE (Ratio metric, 0-10V, CANbus) as well as PVHC (High Current PWM) actuators

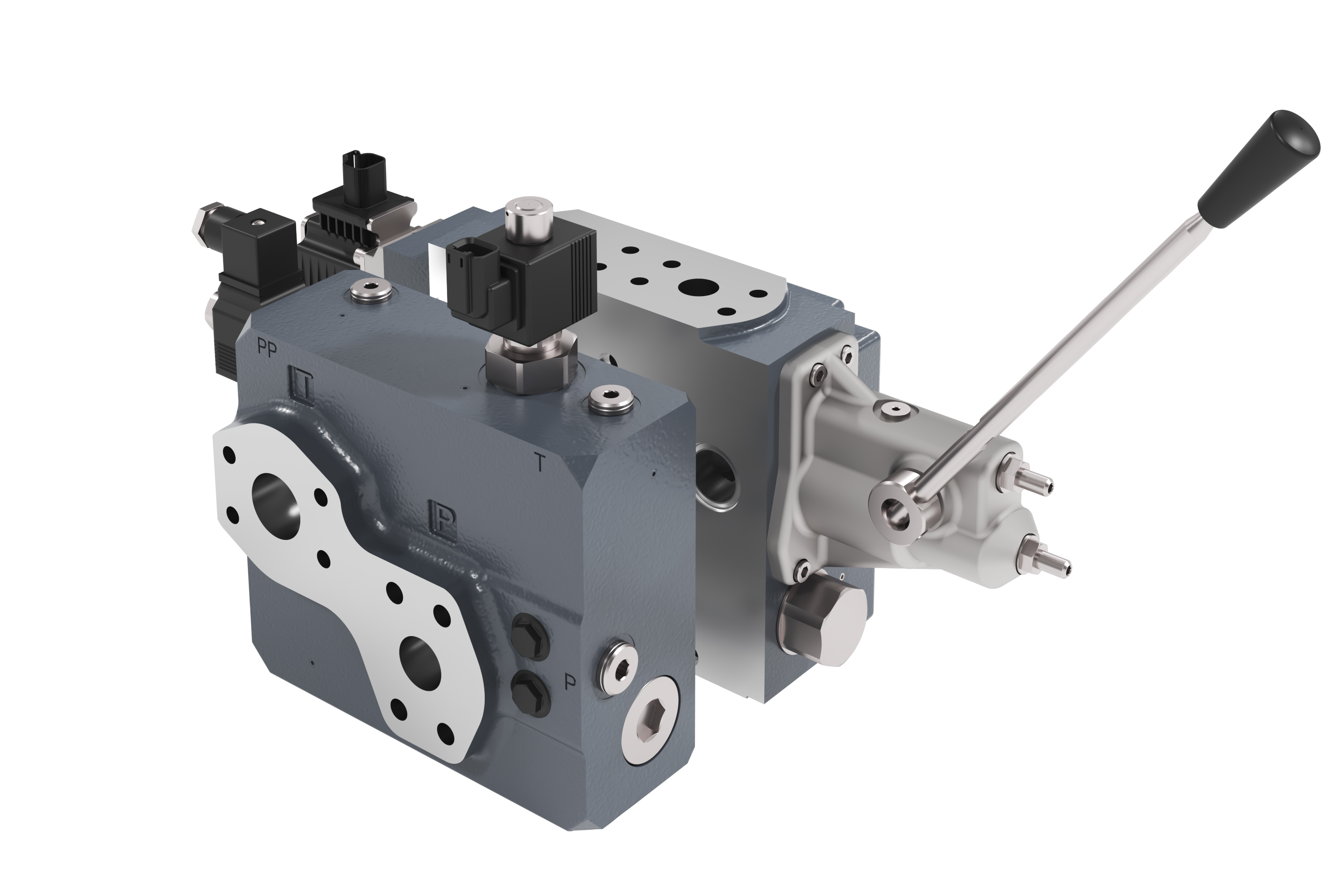

PVG 128/256 Open Centre Solutions

Open center solutions for the PVG 128/256 valve family expand the product line for customer applications with a fixed displacement pump. Solutions include a variety of open center inlets, as well as an open center module that can be used for converting an existing closed center system to open center.

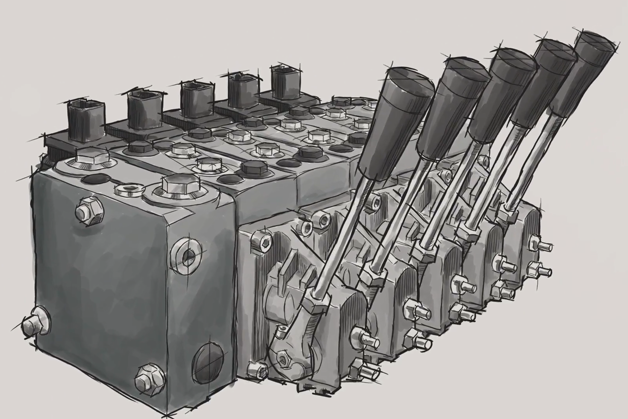

PVG proportional valves portfolio

PVG proportional valves portfolio

Whether you’re moving the largest of loads or need the precise control that feels like an extension of the operator’s own hand, the family of Danfoss PVG proportional valves can address your unique challenges while delivering increased machine productivity and keeping pace with today’s shorter product cycles.

Documents

Documents
Type Name Language Valid for Updated Download File type
User guide PVG 128 and 256 proportional valve group technical information English Multiple 02 Jul, 2024 8.5 MB .pdf
User guide PVG 128 and 256 Proportional Valve Group Technical Information Chinese (CN) Multiple 21 Feb, 2022 8.9 MB .pdf
User guide PVG 128 and 256 Proportional Valve Group Technical Information French France 20 Jan, 2020 8.6 MB .pdf
User guide PVG 128 and 256 Proportional Valve Group Technical Information German Germany 17 Jan, 2019 8.1 MB .pdf
Data sheet PVG 128 and PVG 256 Proportional Valves Data Sheet English Multiple 29 Oct, 2015 332.0 KB .pdf
