High performance
Enjoy the flow-sharing functionality of the PVG 100 – more performance with less horsepower under any conditions.
The flow-sharing technology of the post-compensated, load-sensing PVG 100 is ideal in systems where flow demand regularly pushes supply to the limits.
The modular PVG range is designed for maximum flexibility.
New PVG 100 high flow options tackle the heaviest loads
The new PVG 100 high flow post-compensated valve raises port flows with less work - pump margin of 15 bar [217 psi] - and lowers the return pressures. PVG 100 high flow options meet the increased demands for high efficiency and high flow solutions.
Sharing the flow
The PVG 100 distributes flow to multiple machine functions proportional to their load and flow requirements. As such, when demand exceeds supply each function remains up and running – on proportionally less flow. In the face of tougher emissions laws, there really is no better way to improve performance with less power and reduced energy consumption.
Machine benefits
Flow sharing for optimum controllability and user-friendliness
Load-independent flow control for precise operation and improved productivity
Load-sensing technology for higher efficiency, safety, reduced energy consumption, and longer system lifetime
Product features
Modular design, which can be combined with PVG 32
Post compensated flow sharing valve
Open spool-ends for mechanical actuation
Optimized return flow characteristics, which minimizes pressure loss
PVG proportional valves portfolio
Whether you’re moving the largest of loads or need the precise control that feels like an extension of the operator’s own hand, the family of Danfoss PVG proportional valves can address your unique challenges while delivering increased machine productivity and keeping pace with today’s shorter product cycles.

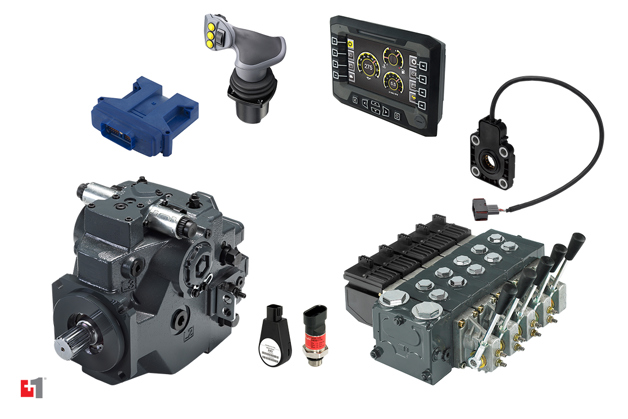

PLUS+1® programmable and compliant hardware
Maximized machine productivity − PLUS+1® programmable and compliant hardware secures simple integration in optimized systems.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | PVG 100 Load Independent Proportional Valve Data Sheet | English | Multiple | 09 Mar, 2015 | 597.7 KB | |
| User guide | PVG 100 Load Independent Proportional Valve Technical Information Manual | Chinese (CN) | Multiple | 21 Feb, 2022 | 9.1 MB | |
| User guide | PVG 100 Load Independent Proportional Valve Technical Information Manual | Japanese | Multiple | 19 May, 2023 | 8.0 MB | |
| User guide | PVG 100 Proportional Valve Group Technical Information | Japanese | Japan | 14 Nov, 2024 | 11.3 MB | |
| User guide | PVG 100 Proportional Valve Group Technical Information | English | Multiple | 15 Apr, 2021 | 8.9 MB |
