PVE electrohydraulic actuators

Designed for integration

Get fast, accurate and intelligent operation with our plug and perform PVE actuators – under any operating and environmental conditions.

The portfolio includes more than 50 different versions of our PVE actuators – from simple analog on/off actuators to SIL 2 certified CAN bus actuators. Our PVED CAN bus actuators are designed for integration in J1939/ISOBUS and CANopen systems.

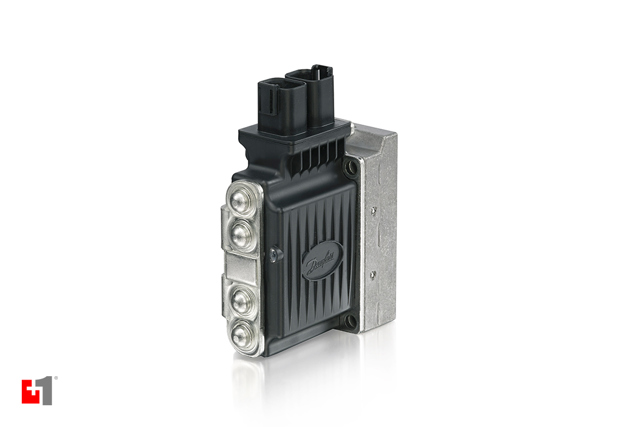

Analog electrohydraulic actuators
Analog electrohydraulic actuators
  • PVEO, PVEA, PVEM, PVEH, PVES S7
  • PVEP S4
  • PVHC

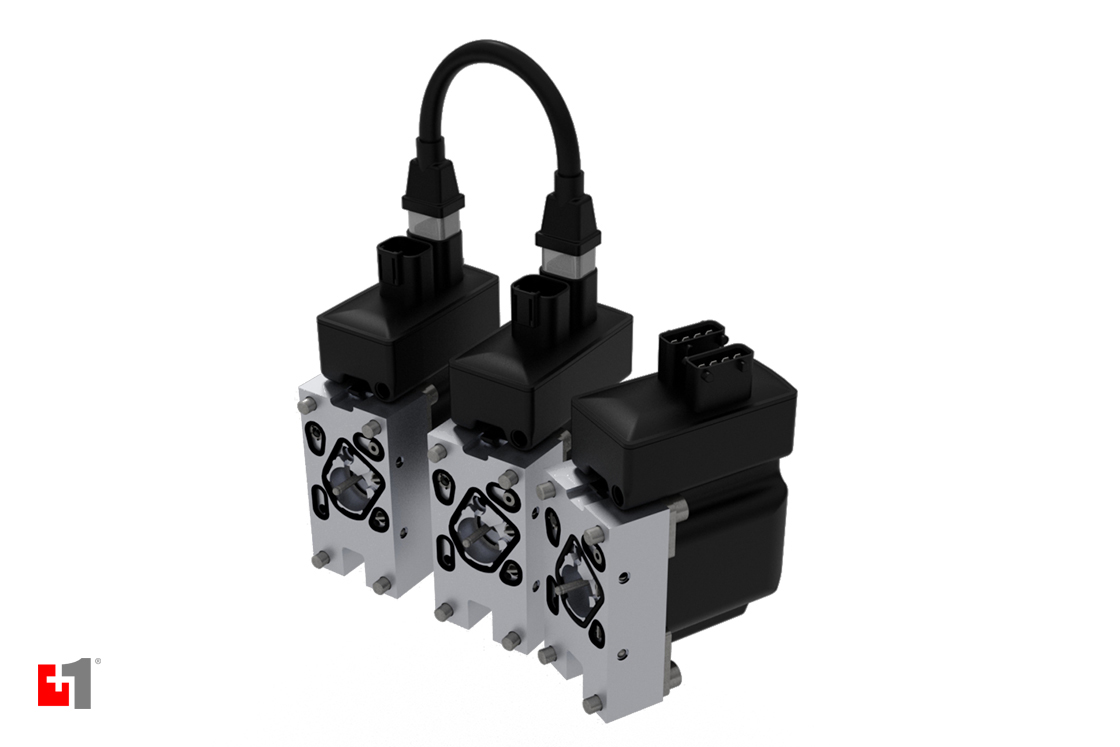

Digital CAN bus electrohydraulic actuators
Digital CAN bus electrohydraulic actuators
  • PVEO-CI, PVEA-CI S6
  • PVED-CC S4 and S5
  • PVED-CX S4

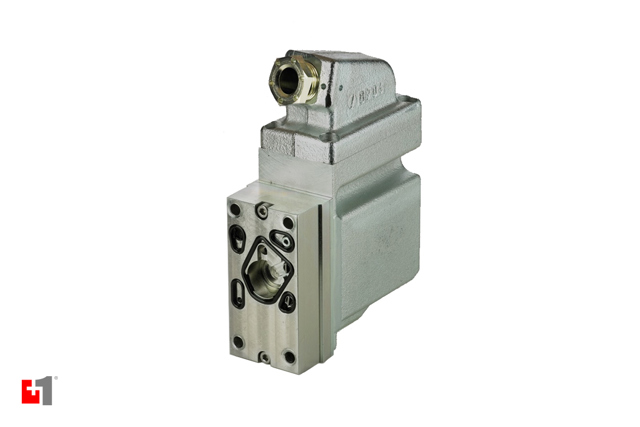

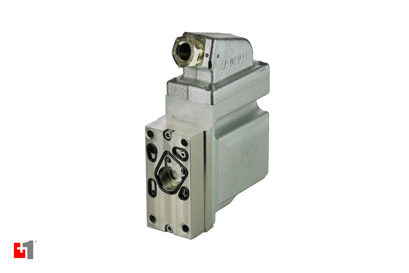

Special application electrohydraulic actuators
Special application electrohydraulic actuators
  • PVEO-EX, PVEH-EX, PVES-EX

Machine benefits

  • Energy efficient solutions for any application with PVE hydraulic and voltage control principles
  • Easy implementation into new and existing systems with multi-voltage power supply and wide range of performance, connector and control principle variants
  • Easy to comply to on-road legislation with E-mark certification acc. to UNECE regulation no. 10
  • Increased diagnostics with embedded event monitoring and integrated LED indicating functional status



Product features

  • Wide range of performance variants to meet the requirements of any application and function
  • Increased energy efficiency with low power and oil consumption
  • Increased immunity to viscosity, temperature and voltage variations with closed-loop control variants
  • Increased diagnostic coverage with dual demodulator spool position monitoring principle
  • Increased environmental robustness with superior corrosion protection and ambient temperature rating of -40°C to +90°C [-40°F to +194°F]
  • Improved EMC robustness with high frequency (HF) immunity field strength of 100 V/m acc. to EN 61000-6-2 and 150 V/m acc. to ISO 13766
  • IP65 rated DIN connectors, IP66 rated AMP connectors and IP67 rated Deutsch connectors
  • Optimized control principle compatibility with ratiometric voltage control, fixed 12 VDC and 24 VDC voltage control, fixed 0-10 VDC voltage control, PWM voltage control and PWM current control variants
  • Multi-voltage 11-32 VDC, fixed 12 VDC and 24 VDC voltage supply variants

Machine benefits

  • Speed up time to market with SIL 2 certified products
  • A build-in surveillance monitors both the PVEs and the valve performance
  • Plug and perform capability
  • Easy setup and installation speeds up time to market
  • User selectable, progressive flow characteristics in our digital PVED CAN bus actuators
  • Advanced built-in diagnostic functions



Product features

  • PVED-CX is SIL 2 certified according to IEC 61508
  • PVED-CC is PLUS+1® compliant, which enables OEMs to change PVED-CC parameters in the PLUS+1® GUIDE service tool.
  • CANopen protocol (CiA 3.01 and CiA 4.08)
  • J1939/ISOBUS CAN control
  • Advanced performance settings
  • Environmental robustness identical to analog PVE
  • Power consumption <9W
  • Increased energy efficiency with low power and oil consumption
  • Increased immunity to viscosity, temperature and voltage variations with closed-loop control variants
  • Optimized control principle compatibility with ratiometric voltage control, fixed 12 VDC and 24 VDC voltage control, fixed 0-10 VDC voltage control and PWM voltage control. Multi-voltage 11-32 VDC, fixed 12 VDC and 24 VDC voltage supply variants

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet Electrohydraulic Actuator Analog PVE Series 7 Data Sheet English Multiple 15 Sep, 2017 312.8 KB .pdf
Data sheet Electrohydraulic Actuators PVE-EX Data Sheet Chinese (CN) Multiple 27 Nov, 2019 4.4 MB .pdf
User guide PVE Series 4 Electrical Actuating Module for PVG 32/100/120 and PHVC Technical Information Portuguese Brazil 01 Jul, 2015 3.9 MB .pdf
User guide PVE Series 4 Electrical Actuating Module for PVG 32/100/120 and PVHC Technical Information Manual Chinese (CN) China 09 Mar, 2015 3.3 MB .pdf
User guide PVE Series 4 for PVG 32 100 120 PVHC Technical Information English Multiple 23 Apr, 2020 5.6 MB .pdf
Brochure PVE Series 7 Brochure English United States 09 Jan, 2017 8.5 MB .pdf
User guide PVE Series 7 Electrohydraulic Actuators Technical Information French France 08 Aug, 2017 6.1 MB .pdf
User guide PVE Series 7 Electrohydraulic Actuators Technical Information Chinese (CN) China 03 Mar, 2018 6.3 MB .pdf
User guide PVE Series 7 Electrohydraulic Actuators Technical Information German Germany 12 Oct, 2017 6.1 MB .pdf
User guide PVE Series 7 Electrohydraulic Actuators Technical Information Japanese Multiple 04 Sep, 2023 5.3 MB .pdf
User guide PVE Series 7 Technical Information Japanese Japan 14 Nov, 2024 9.8 MB .pdf
User guide PVE Series 7 Technical Information English Multiple 04 Aug, 2023 6.5 MB .pdf
Data sheet PVE-EX Electrohydraulic Actuators Data Sheet English Multiple 15 Sep, 2016 4.3 MB .pdf
User guide PVE-EX Ex db for PVG Proportional Valves Technical Information Chinese (CN) Multiple 18 Aug, 2020 12.7 MB .pdf
User guide PVE-EX Ex db for PVG Proportional Valves Technical Information English Multiple 16 Oct, 2017 12.2 MB .pdf
User guide PVEA-CI and PVEO-CI Series 6 Electrohydraulic Actuators Technical Information English Multiple 22 Nov, 2022 3.1 MB .pdf
User guide PVED CC Series 5 ISObus Electrohydraulic Actuator Technical Information English Multiple 01 Oct, 2021 2.8 MB .pdf
Data sheet PVED-CC Electrohydraulic Actuator Data Sheet English Multiple 09 Mar, 2015 1.8 MB .pdf
User guide PVED-CC Series 4 Electrohydraulic Actuator Technical Information Manual English Multiple 09 Mar, 2015 6.2 MB .pdf
User guide PVED-CC Series 4 Electrohydraulic Actuator Technical Information Manual Chinese (CN) China 12 Sep, 2018 8.3 MB .pdf
User guide PVED-CC Series 5 CANopen Electrohydraulic Actuator Technical Information English Multiple 22 Nov, 2022 2.8 MB .pdf
User guide PVG 16 proportional valve group technical information Japanese Japan 09 Dec, 2024 7.9 MB .pdf
User guide PVG 16 proportional valve group technical information English Multiple 18 Mar, 2024 5.5 MB .pdf
User guide PVG 16 proportional valve group technical information Japanese Multiple 09 Dec, 2024 6.9 MB .pdf
User guide PVG 16 Proportional Valve Group Technical Information French France 20 Jan, 2020 7.0 MB .pdf
User guide PVG 16 Proportional Valve Group Technical Information Portuguese Brazil 29 Jun, 2015 8.3 MB .pdf
User guide PVG 16 Proportional Valve Group Technical Information Chinese (CN) Multiple 12 Jul, 2021 6.4 MB .pdf
User guide PVG 16 Proportional Valve Group Technical Information German Multiple 21 May, 2019 6.0 MB .pdf
