Meeting your needs

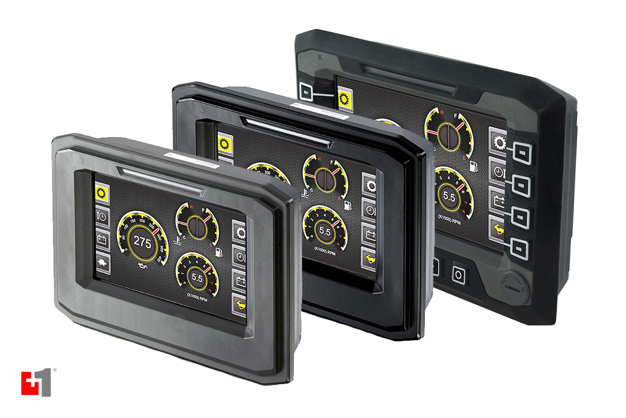

The DP700 series offer three different display options to meet your application needs for both in- and out-of-cab usage.
As an option the display can be equipped with a projective capacitive touch screen that works through mud, water and with gloves on.
Features and benefits
7” high resolution TFT display
800 x 480 pixels
18 bit color resolution
IP 67 for outdoor use
Optically bonded LCD
Two optional video inputs with both PAL and NTSC support
Keypad with 14 buttons (8 soft-keys and 6 buttons for menu navigation) all with white backlight design for low light and night use
Documents
Type | Name | Language | Valid for | Updated | Download | File type |
---|---|---|---|---|---|---|
Data sheet | DP710 Series Displays Data Sheet | Chinese (CN) | China | 06 Jul, 2018 | 638.7 KB | |
Data sheet | DP710 Series Displays Data Sheet | English | Multiple | 19 Oct, 2020 | 534.1 KB | |
Data sheet | DP720 Series Displays Data Sheet | Chinese (CN) | China | 06 Jul, 2018 | 641.2 KB | |
Data sheet | DP720 Series Displays Data Sheet | English | Multiple | 19 Oct, 2020 | 534.3 KB | |
Data sheet | DP730 Series Displays Data Sheet | Japanese | Japan | 06 Feb, 2019 | 1.1 MB | |
Data sheet | DP730 Series Displays Data Sheet | Chinese (CN) | China | 06 Jul, 2018 | 595.2 KB | |
Data sheet | DP730 Series Displays Data Sheet | English | Multiple | 18 Feb, 2021 | 490.9 KB | |
Data sheet | PLUS+1® DP700 Series Displays Data Sheet | Japanese | Japan | 27 Jul, 2018 | 1.1 MB | |
Data sheet | PLUS+1® DP700 Series Displays Data Sheet | English | Multiple | 06 Oct, 2020 | 522.6 KB | |
Data sheet | PLUS+1® DP700 Series Displays Data Sheet | Chinese (CN) | China | 06 Oct, 2015 | 616.1 KB | |
User guide | PLUS+1® DP7XX Series Displays Technical Information | English | United States | 29 Oct, 2020 | 864.2 KB |
