Analogue thermostats

Analogue thermostats are electronic control units which allow you to set the heating system type and adjust control parameters.​
​
3 types of thermostats are available:​

  • for air/room temperature control and limitation of floor temperatures—with room sensor and floor sensor​
  • for air/room temperature control—with room sensor only​
  • for floor temperature control—with floor sensor only​.
DEVIreg™ 130/132 / ECtemp 130/132
DEVIreg™ 130/132 / ECtemp 130/132

DEVIreg™ 130/132 / ECtemp 130/132 is a line of simple electronic 16 Amp thermostats which can be installed directly on the wall. The thermostats have only one button for adjusting the temperature and for OFF mode. Furthermore, they have an LED indicator showing standby (green light) and heating (red light) periods.

DEVIreg™ 330 / ECtemp 330
DEVIreg™ 330 / ECtemp 330

DEVIreg™ 330 / ECtemp 330 is a line of simple electronic thermostats for installation in electric cabinets with a DIN rail attachment. ​

The thermostat must be installed via an all-pole disconnection switch. It has an LED indicating standby (green light) and heating (red light) periods.

DEVIreg™ 530/531/532 / ECtemp 530/531/532
DEVIreg™ 530/531/532 / ECtemp 530/531/532

DEVIreg™ 530/531/532 / ECtemp 530/531/532 is a line of simple electronic 15 Amp thermostats with a 2-pole switch and for flush-mounted fixing. The thermostats are used to control indoor floor heating systems.

DEVIreg™ Hotwater
DEVIreg™ Hotwater

DEVIreg™ Hotwater is an electronic programmable controller with 4 channels for DIN rail mounting. Every channel can be set individually to maintain hot water with the option to disinfect manually or on a schedule. 2 sensors have to be used to measure the temperature for each channel.

Building Management System (BMS) control is possible through the Modbus RS485 serial interface.

Features and benefits using analogue thermostats

Precise control of temperature​

Automatic control of electric heating system​

Economic control of electric heating system​

Possibility of in-wall, on-wall, or DIN rail installation​

Easy temperature setpoint selection

Related products

  • if (isSmallPicture) { Heating mats; } else if (isBigColumns) { Heating mats } else { Heating mats }

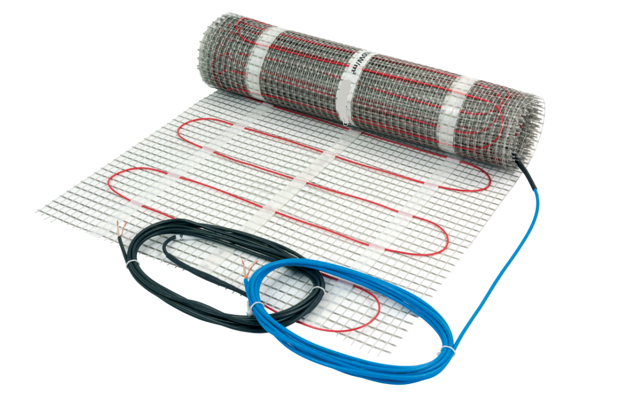

    Heating Mats

    The heating mats are used for installation in a thin layer of tile adhesive, self-leveling mixture, or similar. The standard minimum thickness of the floor layer is 5-8 mm while the thickness of electric heating mat is 3–4.5 mm. This minimizes the floor level increase. Electric heating mats consist of a thin cable securely fixed on self-adhesive glass-fiber mesh, usually of 50 cm width. Thin heating mats are manufactured as ready-made heating sections with a specific area (i.e. 0.5, 1, 1.5 … 12 m²) including a power supply cable (cold lead) and hermetically sealed connections.

  • if (isSmallPicture) { Heating Cables; } else if (isBigColumns) { Heating Cables } else { Heating Cables }

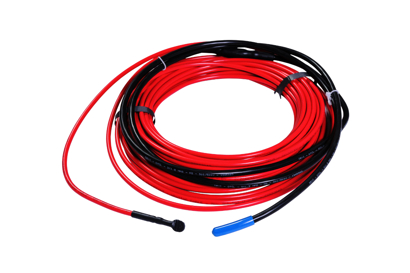

    Heating Cables

    Heating cables are used for a variety of applications, including indoor comfort floor heating and total heating both for small houses as well as large commercial buildings.
    Heating cables are mostly used in connection with new building or larger renovation projects.



Accessories

Relevant accessories

Relevant accessories

Find relevant accessories by following this link

Accessories in Product Store

Videos

Electric heating videos on YouTube

Electric heating videos on YouTube

You can see all our videos about Electric Heating on a dedicated playlist on YouTube. Follow the link below.

Go to the Electric Heating playlist on YouTube

Documents

Documents
Type Name Language Valid for Updated Download File type
Application guide Danfoss Indoor Cable Floor Heating Systems Application manual English Multiple 20 Aug, 2018 3.6 MB .pdf
Catalog Danfoss Product catalogue English Multiple 20.8 MB .pdf
Application guide DEVI Domestic Hot Water Application guide English Multiple 03 Mar, 2023 7.2 MB .pdf
Application guide DEVI Domestic Hot Water Application guide Romanian, Moldavian, Moldovan Romania 26 May, 2022 1.1 MB .pdf
Application guide DEVI Domestic Hot Water Application guide_v2 Danish Denmark 18 Jun, 2024 1.3 MB .pdf
Application guide DEVI Indoor Application manual Romanian, Moldavian, Moldovan Romania 26 May, 2022 21.2 MB .pdf
Application guide DEVI Indoor Application manual English Multiple 04 Nov, 2016 23.6 MB .pdf
Application guide DEVI Indoor Application manual Russian Kazakhstan 15 Sep, 2020 21.2 MB .pdf
Application guide DEVI Indoor Application manual Swedish Sweden 22 Jun, 2022 20.8 MB .pdf
Application guide DEVI Indoor Application manual Danish Denmark 03 Jun, 2021 4.8 MB .pdf
Catalog DEVI Product Catalogue English Multiple 14 Mar, 2024 28.4 MB .pdf
Catalog DEVI Product Catalogue Ukrainian Ukraine 27 Nov, 2023 4.2 MB .pdf
Catalog DEVI Product Catalogue German Austria 25 Apr, 2024 6.4 MB .pdf
Catalog DEVI Product Catalogue Norwegian Bokmål Norway 28 Jun, 2022 13.6 MB .pdf
Catalog DEVI Product Catalogue Finnish Finland 12 Feb, 2024 32.9 MB .pdf
Catalog DEVI Product Catalogue 2022 Latvian Latvia 29 Mar, 2022 3.1 MB .pdf
Data sheet DEVIreg 130/132 German Multiple 17 Mar, 2021 474.6 KB .pdf
Data sheet DEVIreg 330 German Multiple 19 Mar, 2021 491.8 KB .pdf
Data sheet DEVIreg™ 130/132 English Multiple 22 Feb, 2024 447.9 KB .pdf
Data sheet DEVIreg™ 130/132 Danish Denmark 19 Oct, 2022 603.8 KB .pdf
Data sheet DEVIreg™ 130/132 French France 03 Oct, 2024 448.9 KB .pdf
Data sheet DEVIreg™ 330 Ukrainian Ukraine 24 Dec, 2021 97.4 KB .pdf
Data sheet DEVIreg™ 330 French France 03 Oct, 2024 556.3 KB .pdf
Data sheet DEVIreg™ 330 - 10°C to +10° C Danish Denmark 19 Oct, 2022 591.1 KB .pdf
Data sheet DEVIreg™ 330 - 10°C to +10° C English Multiple 22 Feb, 2024 553.2 KB .pdf
Data sheet DEVIreg™ 330 - 10°C to +10° C Romanian, Moldavian, Moldovan Romania 16 Feb, 2016 180.0 KB .pdf
Data sheet DEVIreg™ 330 - 10°C to +10° C Czech Czech Republic 30 Oct, 2015 180.6 KB .pdf
Data sheet DEVIreg™ 530 Czech Czech Republic 30 Oct, 2015 258.1 KB .pdf
Data sheet DEVIreg™ 530 Romanian, Moldavian, Moldovan Romania 16 Feb, 2016 257.9 KB .pdf
Data sheet DEVIreg™ 530, 531, 532 Ukrainian Ukraine 24 Dec, 2021 78.0 KB .pdf
Data sheet DEVIreg™ Hotwater Czech Czech Republic 20 May, 2022 193.0 KB .pdf
Data sheet DEVIreg™ Hotwater English Multiple 22 Feb, 2024 223.6 KB .pdf
Data sheet DEVIreg™ Hotwater Danish Denmark 19 Oct, 2022 435.8 KB .pdf
Data sheet DEVIreg™ Hotwater French France 03 Oct, 2024 225.8 KB .pdf

Tools and apps

ECTemp Smart
ECTemp Smart

ECtemp™ Smart application offers wireless control of electric floor heating systems equipped with ECtemp™ Smart thermostat. The app turns your mobile device into an intuitive floor heating remote control.

Code generator for ECtemp Touch thermostat
Code generator for ECtemp Touch thermostat

Try the virtual code generator for the ECtemp Touch thermostat for Electric Heating. This virtual instrument allows to create special HEXA code according to specific ECtemp Touch thermostat’s settings in order to have two-way communication to setup them by distance.

Warranty

Warranty

At Danfoss, it is important for us to deliver high-quality products with long-lasting effects. Should you, against all expectations, experience a problem with your product, Danfoss offers a warranty for electric heating products valid from the date of purchase that was no later than 2 years from production date.

Depending on the product, the product guarantee is valid for two years, five years, or twenty years.

Product warranty covers costs for:

  • product replacement with a new comparable product or repair of the product
  • transportation costs
Warranty terms

Learning

Danfoss learning - online training free of charge

Visit our Learning Center

Danfoss offers online training materials for technicians and designers working with electric heating. There are 3 e-lessons available free and on-demand through Danfoss Learning portal. For more information, register in our support section by following the link or find the overview of available relevant trainings in the table below.
