Danfoss offers a large range of solutions for construction equipment, even in some of the most demanding conditions

Concrete Pump

With the increasing need for more infrastructure, construction projects are consistently becoming more complex, which require machines that can perform with maximum efficiency and safety. Danfoss offers a large range of solutions for construction equipment, even in some of the most demanding conditions. With the addition of the D1 pump to our Open Circuit portfolio, we are able to provide more options for the toughest construction applications. The D1 pump can be paired with PVG valves and other Danfoss products to meet the needs of your machine.

Concrete pump systems

Boom system- raising and positioning/slewing: Precise and safe boom positioning are essential when working near buildings where spaces are tight and people are working. Use D1 pumps paired with PVG valves to provide flow to the different work functions of the machine, such as raising the boom or slewing for positioning. Limit pump torque consumption by using mechanical torque control or maximize engine and pump capacity using the new electric displacement control, both offered with the D1 pump.

Pump system: Use D1 pumps to provide flow to the hydraulic drive cylinders with displacements of up to 260cc and flow ratings of up to 160 gpm. The D1 pump features full through-drive capability to stack multiple pumps in the system.

Cooling: Meet your cooling demands with the Series 45 pump's fan drive control and Reverse displacement motors.

Electronic solutions: Easy operator interface can be achieved with the Danfoss range of PLUS+1® controls, including modular joysticks from the JS-1 family, rugged DP700 displays, PLUS+1® Connect to send data back to headquarters, and our PLUS+1® SC dual-processor microcontrollers with piggy-back processor for redundant control in a total electric control system package. All of Danfoss’ products are PLUS+1® Compliant. Danfoss’ PLUS+1® Platform provides preprogrammed and tested blocks, which allows all products in your hydraulic system to work more effectively together and reduce programming time while increasing system flexibility.

Related products

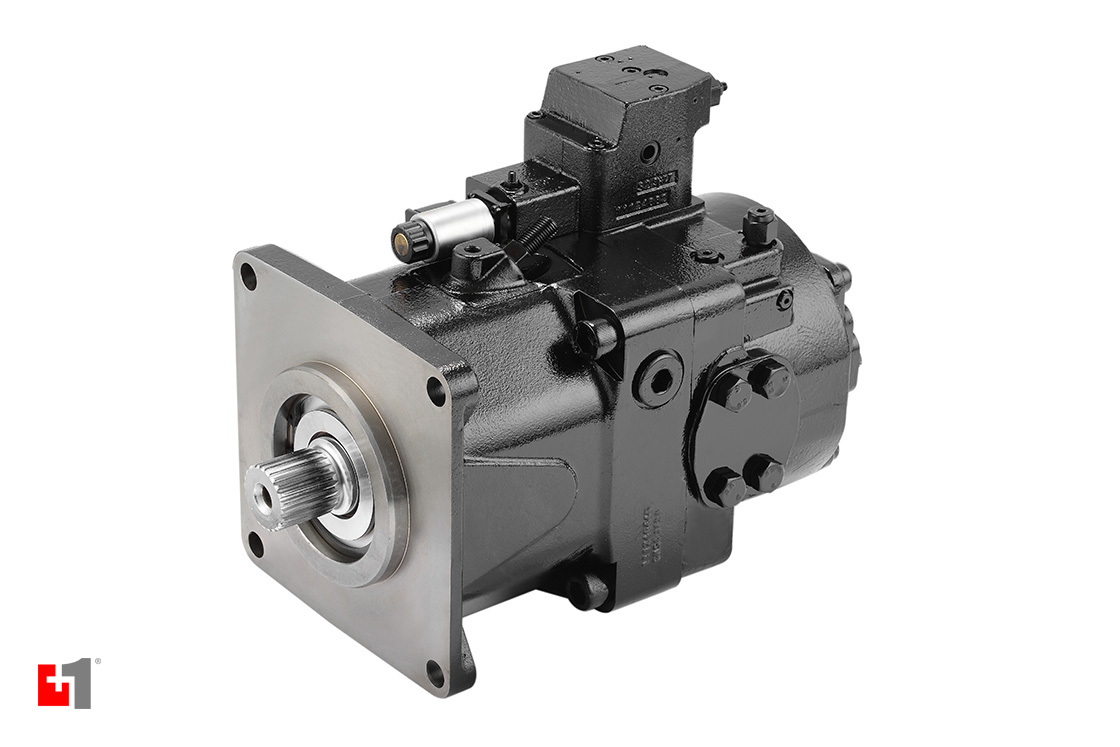

D1P open circuit high power axial piston pumps
D1 pump
  • Works seamlessly with Danfoss' newly launched PVG 128/256 high flow valves to support high flow hydraulic systems
  • Has four displacement options from 130-260cc
  • Pressure compensation, load sensing, power limiting and electric displacement controls
  • Output pressure up to 350bar [5075psi] continuously, 400bar [5800psi] intermittently
  • An integrated charge pump allows D1 pumps to run at speeds up to 2500rpm
PVG 128/256 proportional valves
PVG 128/256
  • Optimized for lower pressure drop and higher efficiency
  • Compact sectional platform solution for easy integration with PVG 16 and PVG 32
  • Compact design, easy installation and serviceability
  • Individual LS A/B relief valves ensure energy efficient, safe and reliable operation
  • Mechanical actuation as default on al valve sections
  • Hydraulic actuation
  • Electrohydraulic actuators PVE (Ratiometric, 0-10V, CANbus) as well as PVHC (High Current PWM) actuators

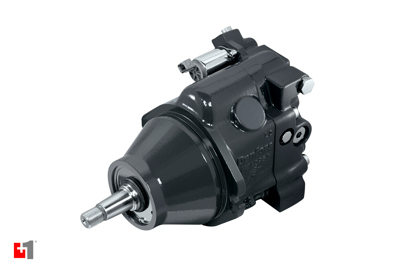

Open circuit reverse displacement motors
Reverse displacement motor
  • Elimination of the directional control valve increases machine efficiency
  • Reducing the need - or even eliminating - the HIC block creates a higher performing system
  • Save money and assembly time by using fewer components such as hoses and valves saves money and assembly time
  • Freeing space in the engine compartment allows for innovative design
  • Eliminating the heat generated by traditional reversing systems keeps your machine running smoothly
  • Draws less power, so more power can be used for work
Series 45 open circuit axial piston pumps
Series 45 pump
  • Full line of displacement controls designed to fit your multiple application needs
  • Series 45 pumps provide a range of options, configurations and controls to help improve machine efficiency, power and performance
  • Designed to work seamlessly with PVG valves, which provide electronic control, load sensing and a flexible modular design, assuring optimum performance
DP700 series
DP720
  • 7” high resolution TFT display
  • 800 x 480 pixel, 18 bit color resolution
  • IP 67 for outdoor use
  • Optically bonded LCD
  • Two optional video inputs with both PAL and NTSC support
  • Keypad with 14 buttons (8 soft-keys and 6 buttons for menu navigation) all with white backlight design for low light and night use
PLUS+1® joysticks
PLUS+1® joysticks
  • Rugged design up to IP66 overall with an ergonomic left, right and straight grips
  • Single and dual axis spring-return and single axis w/ adjust. Friction-hold
  • 5 different output types: CAN (J1939, CANopen), CAN+ and CANalog PVE and Analog, PWM
  • 5 different grip types: ST2- ST7- PR2- PR7*)- and HR1-grip
PLUS+1® MC microcontrollers
PLUS+1® MC microcontrollers
  • High speed DSP technology to process even the most complex applications
  • Stackable microcontrollers for high mounting flexibility
  • 6 I/O configurations in 4 housing sizes and nine total I/O configurations for multiple control options – the building blocks for almost every function
  • CAN-based communications for state-of-the art control performance

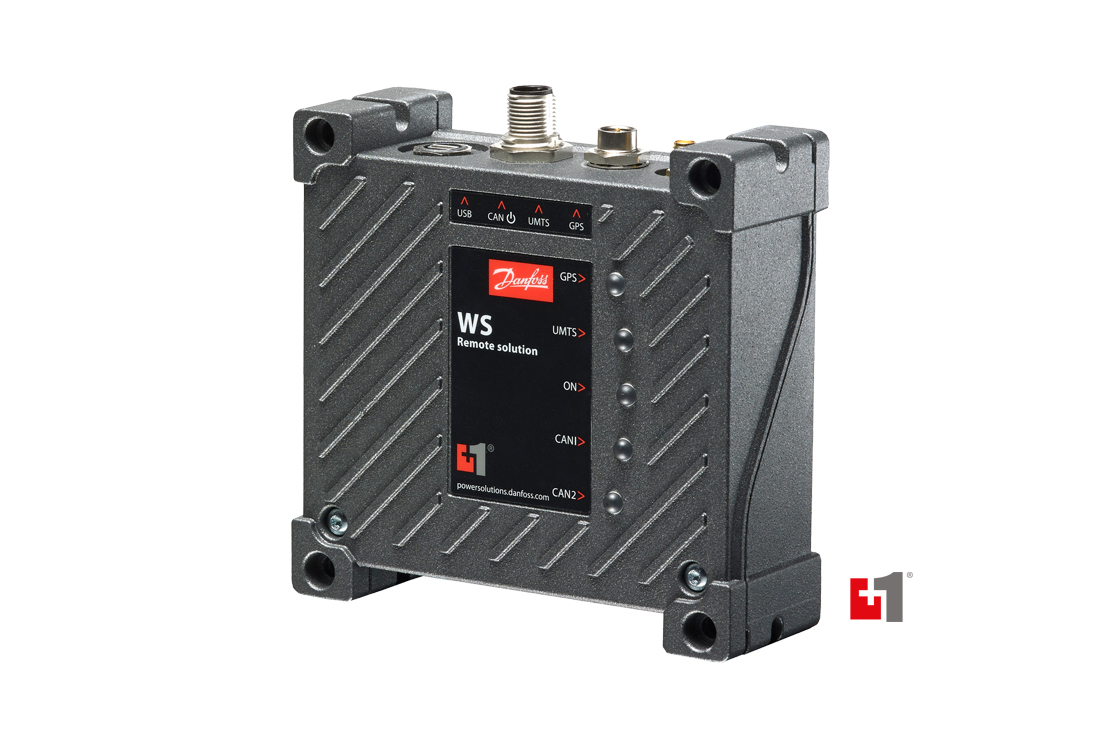

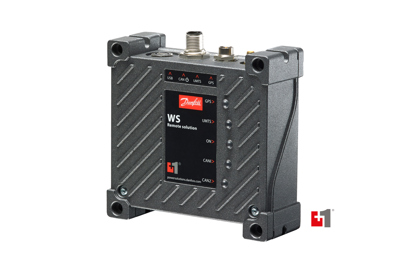

PLUS+1® Connect
PLUS+1® Connect
  • Remote connection, data analysis and diagnostics for faster, more convenient servicing
  • Remote data exchange between machines that are working together
  • Compatibility with multiple satellite navigation systems for global geotracking and geofencing
  • Onboard storage of operational data
