Boost your eSteering system design capabilities

  • Overview
  • Documents
  • Related products
  • Case studies
eSteering made easy - How to implement joystick steering on a wheel loader

eSteering made easy - How to implement joystick steering on a wheel loader

Play video

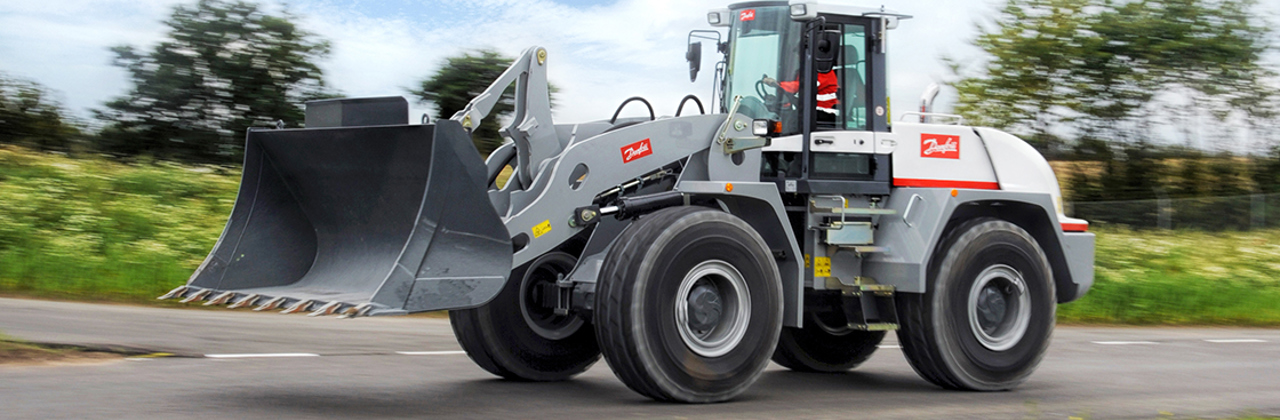

eSteering made easy – Steering system requirements

eSteering made easy – Steering system requirements

Play video
eSteering made easy – Functional safety requirements

eSteering made easy – Functional safety requirements

Play video
eSteering made easy – Valve selection

eSteering made easy – Valve selection

Play video

Your way to faster steering system design

We continuously strive to make it fast and easy to design steering systems for your machines.

Here you will find a set of information and tools that will help you to boost your capabilities for electro hydraulic steering system design and configuration.

Documents

Documents
Type Name Language Valid for Updated Download File type
Application guide Closed Loop Joystick Steering English Multiple 29 Jan, 2019 21.9 MB .pdf
Application guide PVED-CLS Startup Guide English Multiple 07 Nov, 2019 10.0 MB .pdf

Related products

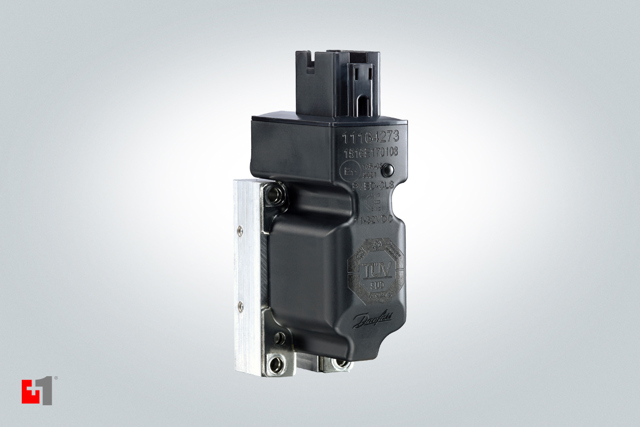

PVED-CLS
PVED-CLS

Steer by Wire technology with functional Safety SIl 2, Tüv certified performance level d, CAN BUS interface, electrical steering wheel, joystick steering and auto guidance - GPS steering, PLUS+1® Service Tool and PLUS+1® libraries.

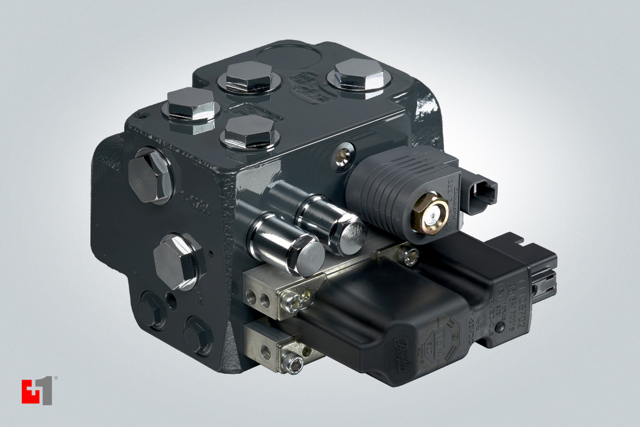

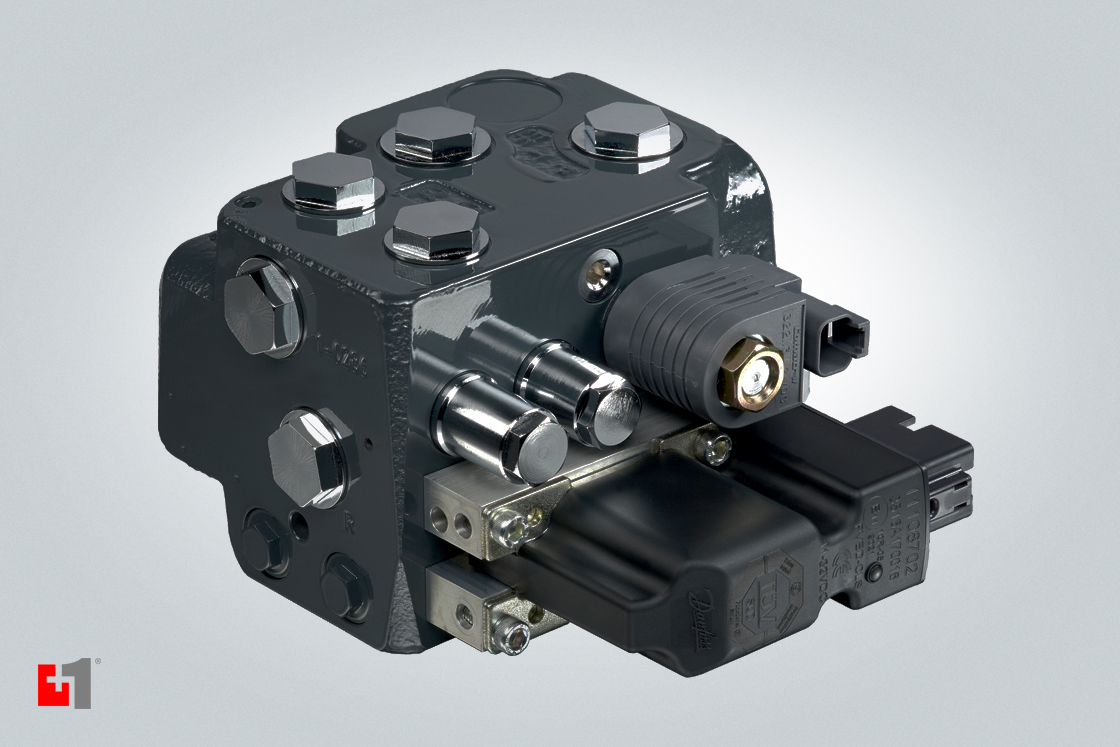

EHi
EHi

Tüv certified EHi steering valve - SIL 2 fail safe. Performance level d for applications with quick steering, auto-guidance, GPS steering, 4 wheel steering, joystick steering and electrical steering wheel.

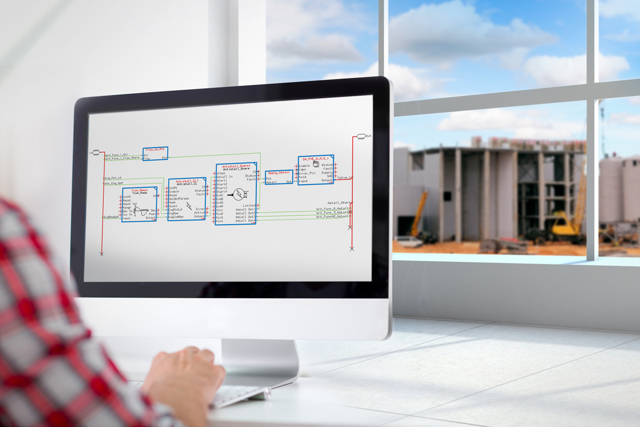

PLUS+1® Software
PLUS+1® Software

PLUS+1® GUIDE and Service Tool is the foundation of the PLUS+1® Platform. It is engineered to accelerate your development process and bring higher quality machines to market faster.​

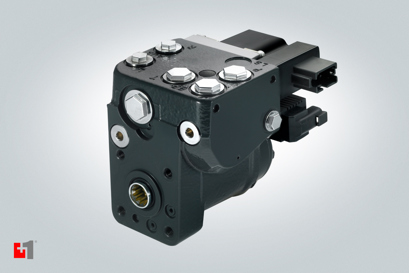

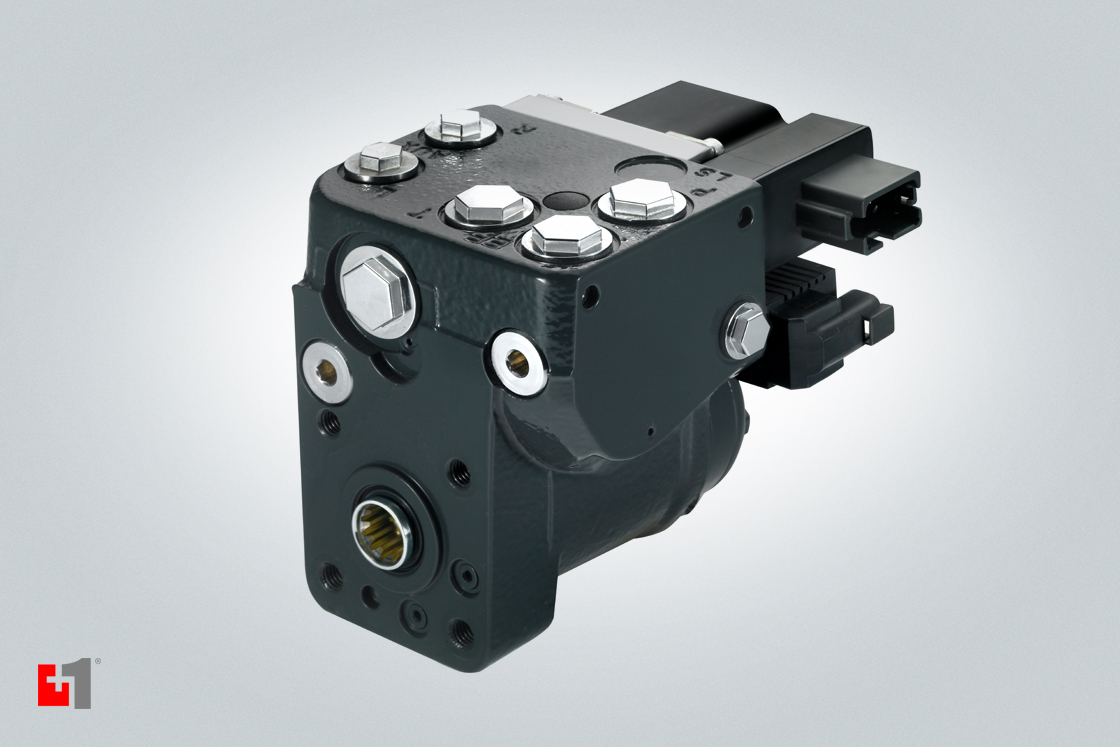

OSPE
OSPE

Electrohydraulic steering valve with functional safety standard SIL 2, performance level d, smart steering.

Case studies

Danfoss Power Solutions - Electrohydraulic Steering


Electrohydraulic steering evolution

Danfoss began producing hydrostatic steering units back in the 1960s. Since then we have introduced many new variants, adapting to both market and regulatory needs. In early 2000, Danfoss developed the first generation of electrohydraulic steering products to fit a wide range of machine types. With GPS automatic steering, variable steering ratio and joystick steering, we made it possible to help customers increase their productivity and comfort.

Read the whole case study here.
