Integrated CBM in one comprehensive package

Condition-based monitoring (CBM) integrated into premium Danfoss drives has revolutionized the way these drives monitor electric motors for faults and potential failures. With breakthrough technology implemented at the drive level, CBM offers advanced features such as motor stator winding monitoring, vibration monitoring, wear-out monitoring of bearings, load envelope (torque) monitoring, and cavitation detection, all in one comprehensive package.

Improving performance via a motor monitoring system

The benefits of CBM for motors are significant. Monitoring performance using CBM provides a simple and cost-effective way to obtain machine data for smart maintenance decisions. With CBM, there is no need for specialized expertise, as existing user interfaces are supported. CBM can be used in a wide range of applications and motor ratings. It’s also reassuring to know that CBM operates independently of the cloud, using edge computing in the drive, ensuring data privacy and security.

One of the key aspects of condition monitoring using Danfoss drives with integrated CBM is the ability to provide early detection and notification of motor isolation faults. Danfoss drives have embedded current transducers, eliminating the need for external sensors, temporary installation end labor to get the motor “talking” to the monitoring system. These drives run a "baseline measurement" to learn the baseline values for each monitoring function. Based on the baseline, warning and alarm thresholds are created to compare the actual values during operation.

Motor stator winding monitoring is a critical function of integrated CBM. By using current signature analysis in the drive, turn-to-turn short winding fault detection is possible. This early warning system helps detect motor failure by identifying faults in the winding insulation allowing planning of maintenance and preventing sudden breakdowns. Advanced algorithms in the drive eliminate false warnings caused by motor imperfections or grid conditions. This feature is supported for asynchronous (IM) and permanent magnet (PM) motors, parallel motors, and works with output filters installed. It can be especially beneficial for motors operating in harsh environments with high humidity and high temperatures, as well as for older motors with fatigued winding insulation.

Make the shift from scheduled maintenance to predictive maintenance

Enable your maintenance decisions based on application data. By enabling early warnings and notifications, CBM increases production uptime by allowing operators to take action on alerts, to perform necessary remedial actions before an unscheduled breakdown occurs. It helps identify damaged motor windings, increasing vibration levels, squealing bearings, and unusual torque values. CBM also allows for the transition from scheduled maintenance to predictive maintenance, increasing the efficiency and effectiveness of maintenance strategies. It is a cost-effective solution compared to external complex systems offered by third parties.

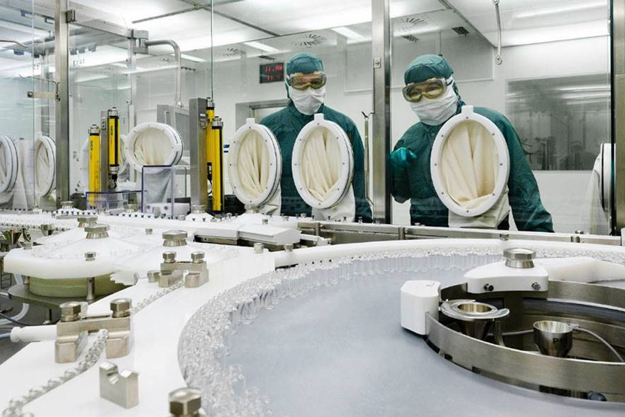

Example: The ability to prevent unexpected breakdowns is especially significant in an aseptic manufacturing environment. One pharmaceutical company conducted tests to prove that intelligent Danfoss drives with integrated condition-based monitoring provide reliable ventilation in an aseptic environment. The drives help to prevent downtime with real-time system monitoring and customizable instant alarms, which provide an early warning enabling operators to take preventive action.

An HVAC system breakdown can instantly contaminate ultra-clean manufacturing operations, regardless of how minor the issue is. Due to lost production, such a breakdown could cost the company millions in lost revenue, for every hour it takes to reestablish the aseptic environment.
Two men, one in a Danfoss jacket and the other in a safety vest and hard hat, pointing to something on a construction site

Motor condition monitoring for remote locations

CBM is especially suitable for remote locations or devices that are difficult to access. With permanent monitoring, potential faults can be detected and addressed before they result in motor failure and production downtime. By taking maintenance strategies to the next level with CBM, industries can increase their application uptime, reduce maintenance costs, and enhance overall operational efficiency.

More about remote monitoring

More condition-based monitoring topics

Aerial view of Nordhavn in Copenhagen, with a condition-based monitoring signal showing on top of several buildings
Condition monitoring with intelligent drives

VFDs act as intelligent sensors for condition monitoring in automated systems. Explore features of intelligent drives and various maintenance strategies.

Man in a safety vest looking at his open laptop while standing above a factory floor
Predictive maintenance through condition monitoring

Predictive maintenance has emerged as a powerful tool to optimize equipment performance, increase uptime, and reduce maintenance costs.

2 people in hard hats looking and pointing at an open laptop
Enhancing condition monitoring with remote monitoring

Remote monitoring empowers users to access real-time data, react early to avoid interruptions, optimize performance, and make informed decisions.
Vibration condition monitoring

Along with stator winding monitoring and load envelope, the CBM functionality integrated into Danfoss drives includes vibration monitoring.

Highlighted products

Danfoss products using condition-based monitoring

Danfoss first innovations

CBM has emerged from a history of Danfoss firsts in innovation. Danfoss drives differentiate from others in the market with intelligent functions embedded in the drive, to reduce the external components required.

More about Danfoss drives

Case stories

  • if (isSmallPicture) { The factory seen from afar with a sunrise in the back ; } else if (isBigColumns) { The factory seen from afar with a sunrise in the back } else { The factory seen from afar with a sunrise in the back }
    How did this smart factory reach carbon-neutral?

    POLAND: The new Danfoss production hall in Grodzisk Mazowiecki has reached carbon-neutrality, thanks to full electrification, energy-saving solutions such as Danfoss drives, and energy from renewable sources.

  • if (isSmallPicture) { Rivoira workers packing apples; } else if (isBigColumns) { Rivoira workers packing apples } else { Rivoira workers packing apples }
    Refrigeration systems preserve apple quality using VSDs with integrated condition monitoring and DrivePro Remote Monitoring service

    ITALY: At Rivoira Group, VLT® drives with built-in condition-based monitoring help preserve fruit perfectly by ensuring utterly reliable refrigeration.

  • if (isSmallPicture) { Boy using the Storm wind tunnel; } else if (isBigColumns) { Boy using the Storm wind tunnel } else { Boy using the Storm wind tunnel }
    How does Beat the Storm deliver more fun for less CO2?

    DENMARK: Universe Science Park saves on both power bill and emissions for its wind tunnel attraction “Beat the Storm”, with the intelligent VLT® HVAC drive.



  • if (isSmallPicture) { Driving maximum uptime in aseptic pharmaceutical production; } else if (isBigColumns) { Driving maximum uptime in aseptic pharmaceutical production } else { Driving maximum uptime in aseptic pharmaceutical production }
    Driving maximum uptime in aseptic pharmaceutical production

    DENMARK: A leading global pharmaceutical company was determined to find an intelligent HVAC solution to prevent downtime with real-time system monitoring and customizable instant alarms. Plus, the solution needed to fit within the organization’s ambitious digitalization strategy. The solution: Danfoss VLT® HVAC Drive FC 102 with integrated condition-based monitoring.

  • if (isSmallPicture) { Brewing up real change at HEINEKEN; } else if (isBigColumns) { Brewing up real change at HEINEKEN } else { Brewing up real change at HEINEKEN }

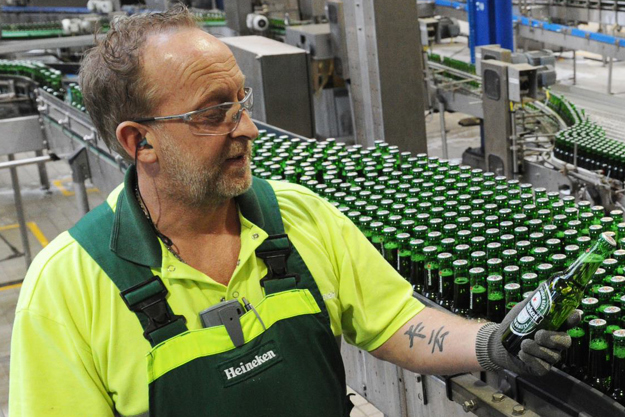

    Brewing up real change at HEINEKEN
