Vertical Bypass Panel Assemblies

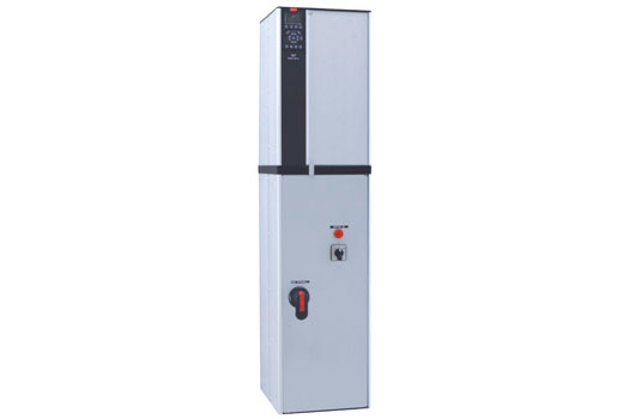

Vertical bypass panel

Same VLT® power — smaller footprint

The Vertical Panel design gives the installer and drive user a centralized drive system featuring main supply disconnect convenience to help ensure operator safety and system protection. Engineered panels are available in a variety of configurations with user-specified options to best match individual application requirements.

Panels are available for:

  • VLT® AQUA Drives
  • VLT® AutomationDrives
  • VLT® HVAC Drives
  • MCD Series Soft Starters
Need support? Try MyDrive® Assistant now!

Options:

  • 208V-240V thru 60 HP, 460V and 600V thru 125HP
  • Fused Disconnect or Circuit Breaker Disconnect
  • Electronic or Electromechanical Bypass
    100KA SCCR
  • Embedded fieldbus communication protocols
  • Various fieldbus and I/O option cards

Features and benefits

Structured around our FC102 VLT® HVAC Drive

Same performance as our traditional panel with smaller footprint

Sleek vertical layout that requires less horizontal wall space

Same high quality components and design as our traditional panel

UL/CUL 508 listed and seismically certified

UL Type 1 / Nema 1 design

Non-bypass or 3 contactor bypass

Inherent phase loss/imbalance and brown-out protection to prevent product damage and downtime in adverse power quality installations

24VDC control power for all but the largest sizes
