Efficiently controlling fluids
Danfoss offers an exceptionally wide range of high performance solenoid valves, available in direct-operated, servo-operated and assisted lift versions. An easy, economical way to control and regulate fluids and gases. Danfoss solenoid valve bodies and electrical coils are normally supplied separately and then combined, but the valves are also available as complete units if required.
We offer a general B valve series with a high capacity and the A series is more economic and compact. Danfoss solenoid valves are assembled quickly and simply without tools, providing optimum product flexibility and availability. A coil can be replaced if needed without stopping or draining the system.
Applications for solenoid valves
Our solenoid valve program includes valves for air, steam, oil, and gas, suiting a number of industrial applications that require high performance in these and other applications:
- Laundry and dry-cleaning equipment
- Industrial washing equipment
- Autoclaves/sterilizers
- Compressors and vacuum pumps
- Plastic moulding machinery
- Steam boilers
- Food processing machinery
- Sprinklers and fire fighting systems
- Dentist equipment
- Coffee machines
- Boilers
Features and benefits
Clip-on coil
Coil range up to IP67
Best water hammer damping
Long lifetime and high performance
Insensitive to dirt
Broad range and customized solutions
Solenoid valve selector
The tool is intended to make it easy for installers and end-users to specify the correct industrial solenoid valves for a range of standard applications.
Protect your system - Hammer your costs
Solenoid, angle seat and thermostatic valves - a fluid control product overview.
Product range
-
if (isSmallPicture) {
EV210B covers a wide range of direct-operated 2/2-way solenoid valves for universal use. EV210B is a real robust valve program with high performance and can be used in all kind oftough working conditions.
-
if (isSmallPicture) {
EV210A covers a wide range of small, direct-operated 2/2-way solenoid valves for use in industrial machinery. The compact design together with the broad range of coils means that EV210A covers a broad variety of industrial applications.
-
if (isSmallPicture) {
EV250BW 10-22 is an assisted lift operated 2/2-way solenoid valve. The valve body is made of ECO brass and uses next-generation EPDM sealings. The valve is a compact valve used for process water with low differential pressure, e.g. process inlet and drinking water applications where drinking water approvals as RISE, SINTEF, ACS, PZH and WRAS are required.
-
if (isSmallPicture) {
EV250B with assisted lift can operate from zero and up to 10 bar differential pressure.This 2/2-way valve program is especially to use in closed circuits with low differential pressure, but demanding moderate flow rates. Valve body in dezincification resistant brass for ensuring a long life even in connection with aggressive steam media. EV250B is compatible with the broad Danfoss coil program with enclosures from IP00 up to IP67. Medium temperatures up to 140°C (low pressure steam).
-
if (isSmallPicture) {

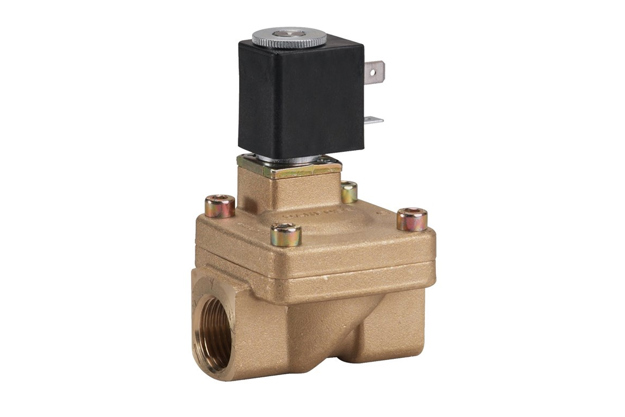

EV220B is a universal 2/2-way solenoid valve program. Valve body in brass, dezincification resistant brass and stainless steel ensures that a broad variety of application can be covered.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | Direct-operated 2/2-way solenoid valves for steam Type EV215B | English | Multiple | 07 Nov, 2017 | 986.4 KB | |
| User guide | How to use solenoid valves | English | Multiple | 10 Nov, 2015 | 1.7 MB | |
| Data sheet | Servo-operated 2/2-way solenoid valves Type EV220B 15 - EV220B 50 | English | Multiple | 01 Sep, 2023 | 20.6 MB | |
| Data sheet | Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP | English | Multiple | 18 Apr, 2024 | 14.3 MB | |
| Data sheet | Solenoid valve type EV210A | English | Multiple | 23 Jun, 2021 | 9.3 MB | |
| Data sheet | Solenoid valve Type EV220B | English | Multiple | 01 Dec, 2023 | 14.4 MB | |
| Data sheet | Solenoid valve Type EV251B | English | Multiple | 23 Jun, 2021 | 5.6 MB | |
| Data sheet | Solenoid valve Type EV310B | English | Multiple | 23 Jun, 2021 | 5.4 MB | |
| Data sheet | Solenoid valve, type EV210B | English | Multiple | 25 Oct, 2023 | 10.4 MB | |
| Data sheet | Solenoid valve, type EV220A | English | Multiple | 23 Jun, 2021 | 5.6 MB | |
| Data sheet | Solenoid valve, type EV245B | English | Multiple | 23 Jun, 2021 | 8.7 MB | |
| Data sheet | Solenoid valve, type EV250B | English | Multiple | 23 Jun, 2021 | 15.6 MB | |
| Data sheet | Solenoid valve, type EV310A | English | Multiple | 23 Jun, 2021 | 4.7 MB | |
| Data sheet | Solenoid valves Type EV220B | English | Multiple | 17 Feb, 2023 | 11.1 MB | |
| Data sheet | Solenoid valves, type EV227B | English | Multiple | 23 Jun, 2021 | 5.1 MB | |
| Data sheet | Solenoid valves, type EV260B | English | Multiple | 15 Feb, 2022 | 9.6 MB |
