Semi plug-in systems

Danfoss offers highly efficient components optimized for semi plug-in refrigeration systems. The components are designed to provide the lowest total cost of ownership, while at the same time reducing the carbon footprint of your supermarket refrigeration system.

Semi plug-in application description

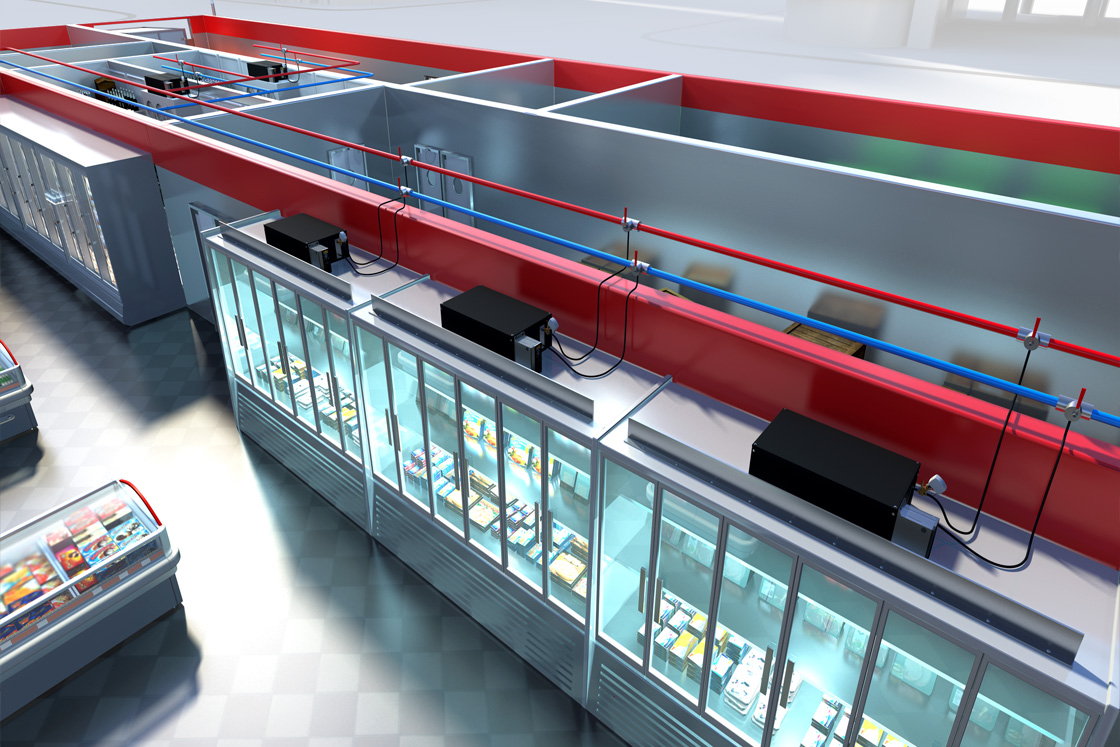

Semi plug-in or water loop systems have individual refrigeration units installed in each cabinet. The heat rejection in the semi plug-in system does not happen in a traditional air-cooled condenser. This has been replaced with a water-cooled condenser.The central part of the system is the water loop that supplies each cabinet with chilled water. The heat is carried by the water loop out of the system and rejected by a dry cooler typically placed on the roof.

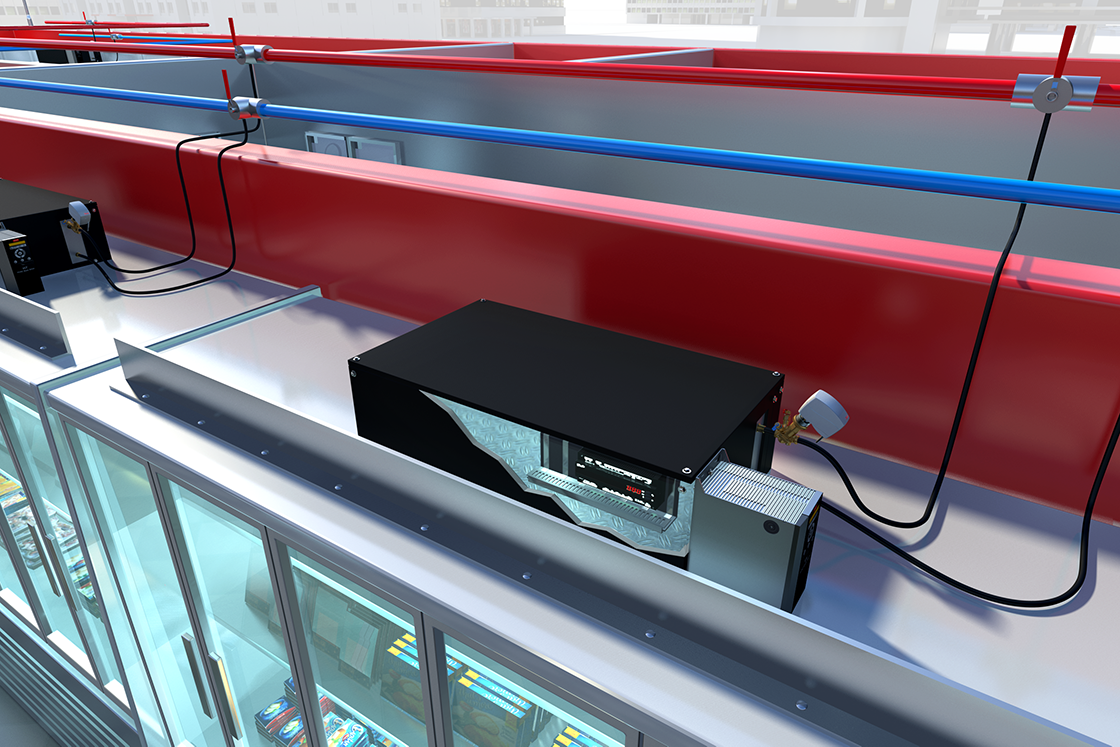

The semi plug-in units are coming as factory made hermetic units build into the cabinets, this ensures a low leak rate on the systems. Installation is simplified as the semi plug-in units are factory charged and only needs electrical and water supply to operate. Semi plug-in refrigeration solutions eliminate the need for a machinery room, thereby by freeing up more sales area.

Features and benefits

Sustainability:

  • A solution tailored for natural refrigerants for global application
  • Low energy consumption

Electronic Controls

  • Multiple refrigeration circuits
  • Fixed and variable speed compressor control

Simplicity

  • Plug and play installation – only needs electrical and water supply
  • Eliminates need for machinery room

Efficiency

  • TXVs to achieve desired conditions while saving energy
  • Micro Plate Heat Exchangers offers high efficiency and low volume

Reliability

  • Factory made hermetic units reduce leak potential
  • Danfoss components offers highest degree of reliability
Coolselector 2 icon from App store

The truth is Cool(selector®2)

Coolselector®2 features unbiased calculations for the selection of refrigeration and air conditioning components based on the user’s input or based on standard operating conditions.

Try Coolselector®2 now

Related products

  • if (isSmallPicture) { Danfoss hydrocarbon compressors for refrigeration applications; } else if (isBigColumns) { Danfoss hydrocarbon compressors for refrigeration applications } else { Danfoss hydrocarbon compressors for refrigeration applications }
    Hydrocarbon compressors

    R290 & R600a: Danfoss propane and isobutane compressors – tailored for light commercial refrigeration applications.

  • if (isSmallPicture) { AB-QM™ Valves; } else if (isBigColumns) { AB-QM™ Valves } else { AB-QM™ Valves }

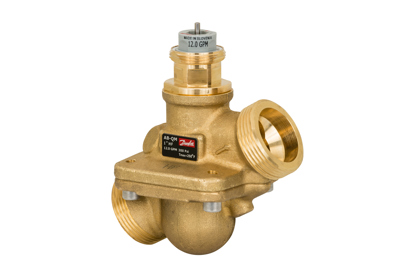

    AB-QM™ Pressure Independent Balancing Control Valves

    Simple Affordable Comfort - Pressure independent control excellence from the global market leader for over 30 years. Discover how Danfoss AB-QM™ Pressure independent balancing control valves (PIBCVs) can improve system efficiency by eliminating overflows and increasing ΔT.

    Danfoss offers a complete range of innovative solutions - ½" to 10", to meet your HVAC system's needs for optimal flow control.

  • if (isSmallPicture) { Product photo of the line of DML and DCL filter driers by Danfoss; } else if (isBigColumns) { Product photo of the line of DML and DCL filter driers by Danfoss } else { Product photo of the line of DML and DCL filter driers by Danfoss }

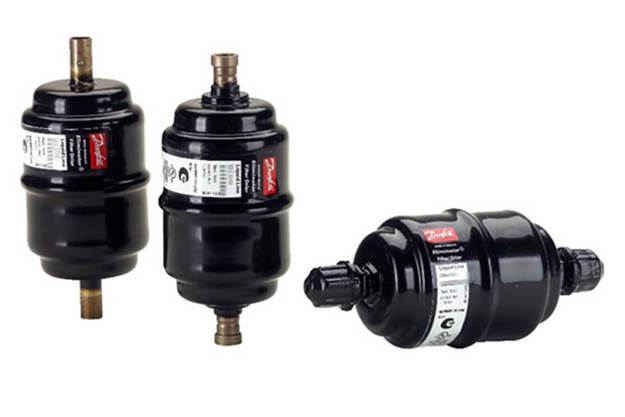

    DML/DCL hermetic filter driers, HFC optimized

    DML hermetic filter driers are optimized for HFC refrigerants and mineral or benzene oils. Compatible with refrigerants R22, R32, R134a, R404A, R410A, R407C, R23, R600, R600a, R744, R1234yf, R1234ze, R407f, R290, R452A, R444B, R449A, R448A and R450A. This product is approved for R290, R600 and R600a by ignition source assessment in accordance to standard EN13463-1.

  • if (isSmallPicture) { Product photo of thermostatic expansion valve family by Danfoss; } else if (isBigColumns) { Product photo of thermostatic expansion valve family by Danfoss } else { Product photo of thermostatic expansion valve family by Danfoss }

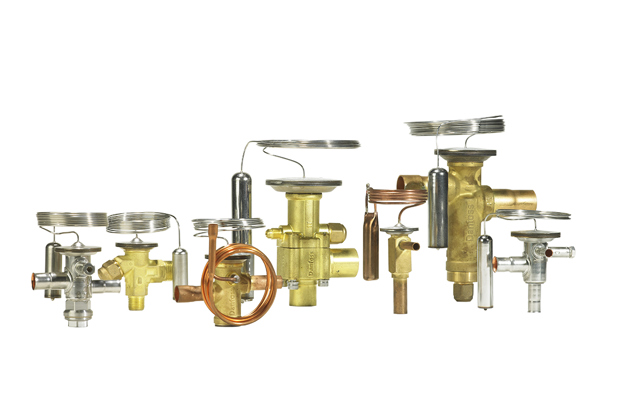

    Thermostatic expansion valves

    Thermostatic expansion valves (TXV) are available as parts programs, i.e. with separate valve body and orifice assemblies, or as complete valves (fixed orifice).

  • if (isSmallPicture) { AKS 32R and AKS 2050 pressure transmitters | Danfoss; } else if (isBigColumns) { AKS 32R and AKS 2050 pressure transmitters | Danfoss } else { AKS 32R and AKS 2050 pressure transmitters | Danfoss }

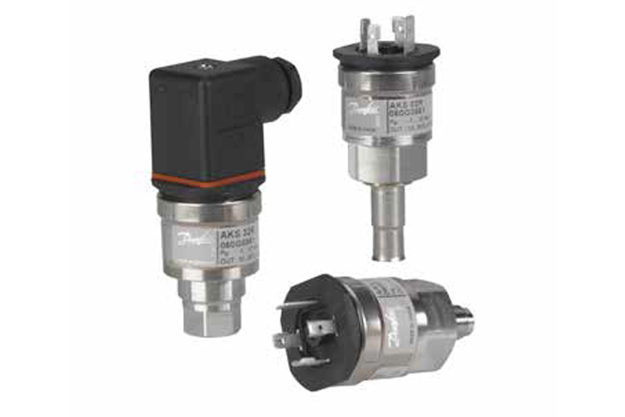

    AKS 32R and AKS 2050 pressure transmitters

    AKS 32R is a ratiometric pressure transmitter that converts the measured pressure to a linear output signal.
