EV250BW 10-22 solenoid valves
EV250BW 10,12,18 & 22 with assisted lift can operate from zero and up to 10 bar differential pressure. This 2/2-way valve program is especially used in applications with low differential pressure but demanding moderate flow rates. This valve type is designed with an EPDM seal, lead-free dezincification resistant ECO brass for drinking water applications. - For water supply - Houses and large apartments - Kitchens and bathrooms - Commercial buildings - Industrial buildings - Zoning - Laundry - Dishwashing - Main inlet valves - Dosing Machines - Food processing.
Features and benefits
Designed for drinking water
Clip-on coil
Flow range KV 2,5 - 7 m³/h
Differential pressure 0 - 10 bar
Media temperature range 0 – 90 °C
Ambient temperature: Up to 80 °C
Coil enclosure: Up to IP67
Thread connections: G3/8, G1/2, G3/4 & G1
Viscosity: Up to 50 CST
Water hammer damped
Approvals and certificates
Valves are certified by RISE, notified body 1002. Valid in Denmark and Sweden. In accordance with Boverket Building Regulations (BBR 21, 2014-06-17) Certificate number SCO155-18.
Valves are certified by SINTEF. Valid in Norway. In accordance with NKB Product rules nr. 13, pkt. 3.2 – 3.6 -NT VVS 100, pkt. 6.4.2 & 6.4.8 -EN ISO 6509.
Inspection by DTI.
Valves are certified by Carso according to ACS guidelines, Circulaire 2002/571.
Hygenic certificate B-BK-60210-1275/19. Issued by Polish National Institute of Public health (PZH).
Valves are certified by WRAS – tested by NSF International in Wales
Wetted materials in accordance with 4MSI (member states Germany (DVGW – W270), Holland (KTW), France (ACS), UK (WRAS) and Denmark (RISE) .
In accordance with:
- Low Voltage Directive 2014/35/EU
- EN60730-1
- EN60730-2-8
- Pressure Equipment Directive 2014/68/EU
RoHS Directive 2011/65/EU without exemption 6c
The clever choice - read more!
Read more about the portfolio of solenoid valves for drinking water and find an overview of the extensive product program in this brochure.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | Solenoid valve type EV250BW | Swedish | Multiple | 29 Dec, 2021 | 8.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | Spanish, Castilian | Multiple | 29 Dec, 2021 | 8.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | German | Multiple | 29 Dec, 2021 | 8.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | Polish | Multiple | 29 Dec, 2021 | 8.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | Lithuanian | Multiple | 22 Jun, 2023 | 9.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | Dutch, Flemish | Multiple | 12 Jun, 2023 | 9.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | French | Multiple | 18 May, 2023 | 9.3 MB | |
| Data sheet | Solenoid valve Type EV250BW | Hungarian | Multiple | 07 Jul, 2023 | 9.4 MB | |
| Data sheet | Solenoid valve Type EV250BW | English | Multiple | 27 Mar, 2024 | 9.2 MB | |
| Data sheet | Solenoid valve Type EV250BW | Danish | Multiple | 29 Dec, 2021 | 8.2 MB |
Approvals
Related products
-
if (isSmallPicture) {
The EV220BW and EV228BW are indirect servo-operated 2/2-way solenoid valve designed for drinking water and available in NC, NO, or UN-latching. Valve sealings are available in EPDM, and the valve body in ECO brass or stainless steel. Wetted materials in accordance with 4MS, DVGW, KTW and W270 and the valve program have RISE, SINTEF, ACS and PZH approvals as well for cold and hot water applications.
-
if (isSmallPicture) {

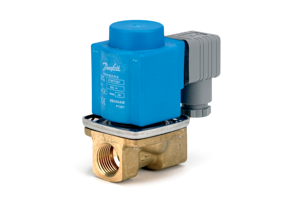

EV221BW 10-22 is a direct servo-operated 2/2-way solenoid valve. The valve body is made of ECO brass and uses next-generation EPDM sealings. The valve has a built-in pilot filter, which makes it the ideal choice for water inlet and drinking water applications where drinking water approvals as RISE, SINTEF, ACS or PZH are required.
-
