Heavy-duty temperature sensors, type MBT 3250, 3252, 5250, and 5252

Discover heavy-duty temperature sensors for controlling cooling water, lubrication oil, hydraulic oil, and refrigeration plants within general industry and marine applications. These temperature sensors are based on a standardized Pt 100 or Pt 1000 element, which gives a reliable and accurate measurement. All three sensor types can be delivered with NTC/PTC elements on request.

•MBT 3250 temperature sensor (3D/AR)
•MBT 3252 temperature sensor (3D/AR)
•MBT 5250 temperature sensor (3D/AR)
•MBT 5252 temperature sensor (3D/AR)

In the low-temperature version (-50 to 200 °C), the measuring insert is based on a silicone cable, which makes the sensor very resistant to vibrations. The MBT 3250 and 5250 temperature sensors come with interchangeable measuring inserts equipped with EN 175301-803-A, Pg 9 as standard. The MBT 3252 and 5252 sensors are equipped with a B-head as standard but can also be delivered with B-mini head on request. If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the MBT 5252 sensor.

Features and benefits

Gaseous or liquid media, e.g., air, gas, vapor, water, or oil

Pt 100 or Pt 1000 sensing element

Can be used with 2- or 3-wire connections

Shock and vibration resistant

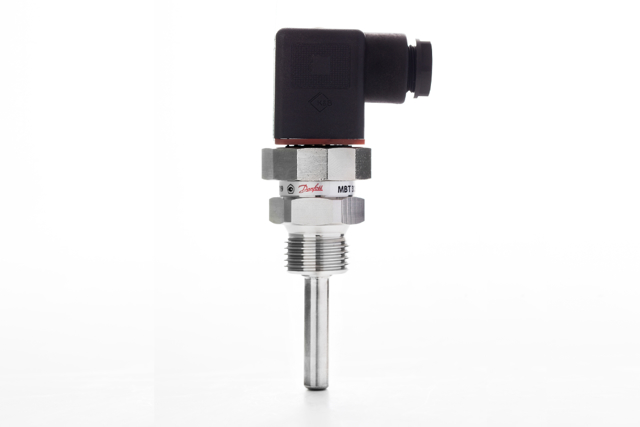

MBT 3250 temperature transmitter designed for industrial applications
MBT 3250 temperature transmitter designed for industrial applications

MBT 3250 features:

  • Up to 200 °C media temperature
  • 1 or 2 elements
  • Gold-plated male and female connector
  • With interchangeable measuring insert

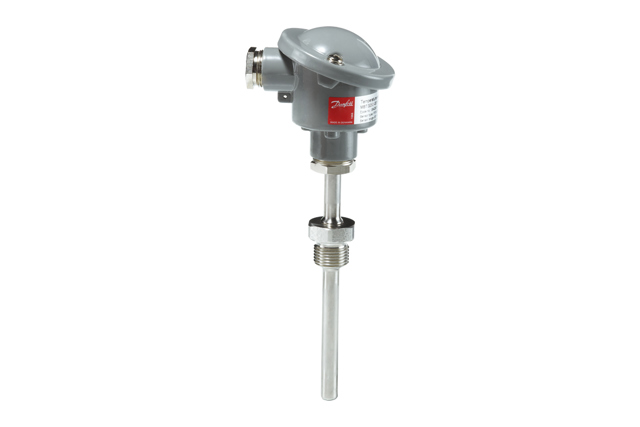

MBT 3252 temperature transmitter designed for heavy duty industrial applications
MBT 3252 temperature transmitter designed for heavy duty industrial applications

MBT 3252 features:

  • Up to 200 °C media temperature or 400 °C media temperature
  • Equipped with a B-head as standard
  • Interchangeable measuring insert
  • Available with built-in transmitter

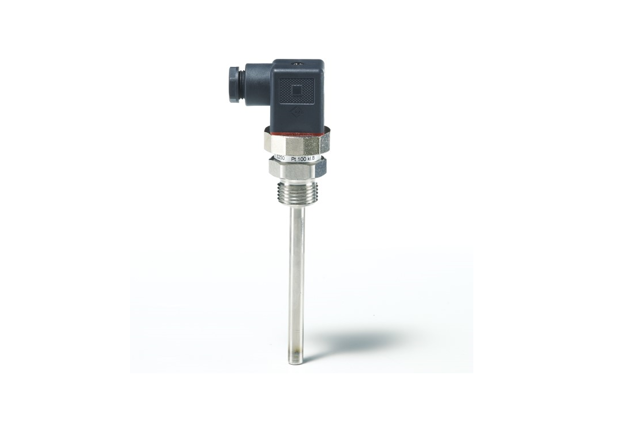

MBT 5250
MBT 5250 temperature transmitter designed for marine applications

MBT 5250 features:

  • Up to 200 °C media temperature
  • 1 or 2 elements
  • Gold-plated male and female connector
  • With interchangeable measuring insert
  • All relevant marine approvals

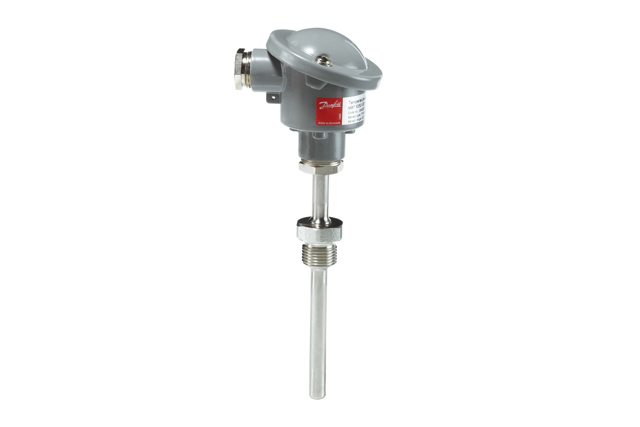

MBT 5252 temperature transmitter
MBT 5252 temperature transmitter designed for heavy duty marine applications

MBT 5252 features:

  • Up to 200 °C or 400 °C media temperature
  • Equipped with a B-head as standard but can also be delivered with B-mini head on request
  • Available with built-in transmitter
  • All relevant marine approvals
Origami

Explore new horizons with Danfoss marine solutions

Exceed requirements and customer expectations with Danfoss marine products

Download our marine brochure

Documents

Documents
Type Name Language Valid for Updated Download File type
Data sheet Temperature Sensors types MBT 5250, MBT 5260 and MBT 5252 Polish Multiple 14 Jun, 2022 2.4 MB .pdf
Data sheet Temperature Sensors types MBT 5250, MBT 5260 and MBT 5252 Chinese (CN) Multiple 04 Aug, 2022 2.9 MB .pdf
Data sheet Temperature Sensors types MBT 5250, MBT 5260 and MBT 5252 Spanish, Castilian Multiple 14 Jun, 2022 2.4 MB .pdf
Data sheet Temperature Sensors types MBT 5250, MBT 5260 and MBT 5252 German Multiple 14 Jun, 2022 2.4 MB .pdf
Data sheet Temperature sensors, type MBT 5250, MBT 5260 and MBT 5252 Russian Multiple 14 Jun, 2022 2.4 MB .pdf
Data sheet Temperature sensors, type MBT 5250, MBT 5260 and MBT 5252 English Multiple 26 Feb, 2021 2.2 MB .pdf
Data sheet Temperature sensors, type MBT 5250, MBT 5260 and MBT 5252 Ukrainian Ukraine 19 Jul, 2023 2.5 MB .pdf
