At Frederikshavn District Heating Utility (DHU), a 14 MW gas boiler is utilized during the cold months to ensure sufficient heat supply to the Frederikshavn community. A project was initiated by ME Production, involving Danfoss and heat pump OEM partner Energy Machines, to enhance energy utilization by recovering boiler flue gas heat. This was accomplished by modifying the existing economizer to increase the recovered capacity and boost boiler capacity with the resulting condensing function. A heat pump is integrated into the system to boost the heat from exhaust recovery back to the boiler. This initiative reduces operating costs and significantly contributes to CO2 emission reduction.
As a result, Frederikshavn DHU can expand its existing heat production infrastructure while also reducing overall heat generation operating costs.
Introduction
Frederikshavn DHU operates a 14-megawatt gas boiler to provide essential heating services during colder periods. To improve energy efficiency and reduce environmental impact, a project was initiated to recover more energy from the flue gas emitted by the existing biomass boiler system.
Problem/Challenge:
The main challenge was to maximize energy recovery from the flue gas and enhance the overall efficiency of the heating system, driving down operating costs and the end customer heat price. This required significant modifications to the existing economizer and integrating advanced heat pump technology.
Solution:
The solution involved rebuilding the economizer to recover heat from the exhaust in a closed chilled water heat pump evaporator loop. This recovered heat is then boosted through the heat pump to pre-heat the feedwater entering the boiler, thus reducing the boiler’s workload. The flue gas condensing recovery leads to a high heat pump chilled water temperature, which in turn results in a lower temperature lift requirement for the heat pump and a high resulting heat pump coefficient of performance of 5.7.
Results/Outcomes:
The project successfully enhanced energy recovery, leading to significant operational cost savings and a notable reduction in CO2 emissions. The estimated energy savings are equivalent to the annual heat consumption of 150 households. The project also marked ME-Production’s significant entry into the land-based market, demonstrating the effectiveness of their heat pump technology.
It’s inspiring to see how collaboration helps develop new, innovative solutions and ultimately sends greener heat to the residents of Frederikshavn. We must deliver on the green transition, and therefore we need skilled companies like ME Production that have the courage to think outside the box and develop and design entirely new green solutions.
Implementation:
The project was implemented through a collaboration with Energy Machines and ME-Production. Energy Machines integrated a range of Danfoss solutions into the water-water heat pumps, including Turbocor® compressors and other essential components.

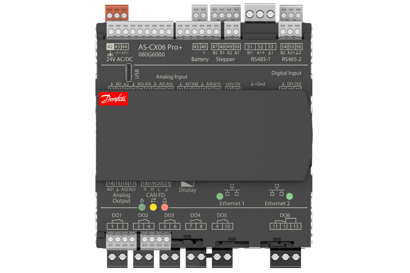

Machines is unique in utilizing a full portfolio of pre-configured Danfoss component solutions for their heat pumps. ME-Production managed the contract with Frederikshavn Forsyning and oversaw system design and control. The project also featured the first use of the new Alsmart™ controller, which was specifically programmed for this application.
Conclusion:
The Frederikshavn DHU Flue Gas Condensing Heat Recovery Heat Pump project highlights the benefits of strategic collaboration and advanced technology in achieving energy efficiency and environmental sustainability. This project’s success sets a benchmark for future initiatives in both the district heating and maritime sectors.
Related products
-
if (isSmallPicture) {

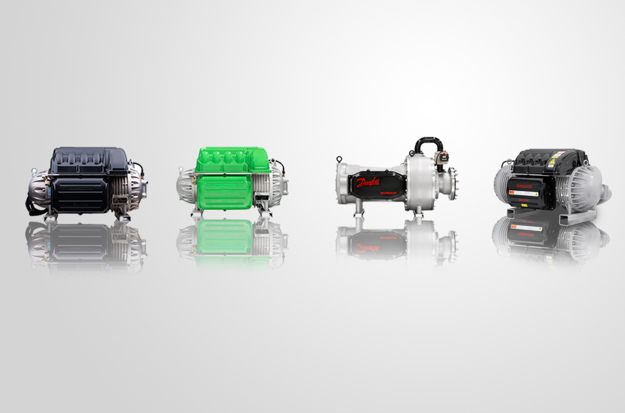

Danfoss is the leading manufacturer of oil-free compressors and is the pioneer of the Danfoss Turbocor® compressor - the world’s first oil-free magnetic bearing compressor for the HVAC industry.
-
if (isSmallPicture) {
Danfoss’ range of universal programmable controllers is the smart compact powerful brain of the HVAC unit
-
if (isSmallPicture) {
SVL Flexline™ platform is now expanding to 140 bar MWP to meet an increasing demand of large manual valves in industrial design for large scale R744 CO2 transcritical systems.
-
if (isSmallPicture) {
Filter driers in hermetic design are ideal for commercial refrigeration applications requiring high drying capacity to prevent acid formation in the system.
-
if (isSmallPicture) {
Danfoss offers a complete range of servo-operated solenoid valves for air conditioning systems. EVR valves can be used in liquid, suction and hot gas lines, and the valves are compatible with fluorinated refrigerants, including high-pressure refrigerants such as R410A (EVRH).
-
if (isSmallPicture) {

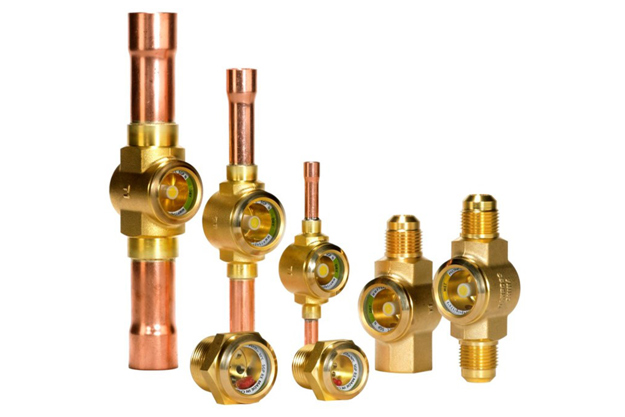

SGP is a series of sight glasses for high pressure applications (Max Working Pressure 52 bar/754 psig). SGP is available in versions optimized for refrigerants with mineral oil e.g. HCFC, and in versions optimized for non-flammable HFC refrigerants. SGP is available with flare, solder and socket connections, and with and without moisture indicators.
-
