EV220S is a range of streamlined compact servo-operated 2/2-way solenoid valves with connections from 1/4" to 2", special designed to fit in applications where space is limited.
EV220S can be used in the following applications:
- Water shut off (EPDM version)
- Building control
- Commercial tap water supply, leak detection, heating, and cooling
- Water for industrial processing
- Laundry and dishwashing
- Car washing
- Oil, air neutral media's (FKM version)
- Air Compressors
- Factory processes
- Pump cooling
Features and benefits
Clip on coil
Coil enclosure: Up to IP67
Flow range Kv 1.6 – 32 m³/h
Differential pressure 0.2 - 10 bar
Media temperature range -30 – 100 °C
Ambient temperature: Up to 50 °C
Thread connections: G ¼ to G 2”
Viscosity: Up to 50 cSt
WRAS approved with EPDM sealing.
Water hammer damped
In accordance with
Pressure Low Voltage Directive 2014/35/EU
- EN60730-1
- EN60730-2-8
Pressure Equipment Directive 2014/68/EU
RoHS Directive 2011/65/EU
cURus
The clever choice - read more!
Read more about the portfolio of solenoid valves for drinking water and find an overview of the extensive product program in this brochure.
Documents
| Type | Name | Language | Valid for | Updated | Download | File type |
|---|---|---|---|---|---|---|
| Data sheet | Indirect servo-operated solenoid valve | Portuguese | Multiple | 18 Apr, 2023 | 5.7 MB | |
| Data sheet | Indirect servo-operated solenoid valve | French | Multiple | 18 Apr, 2023 | 5.7 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Chinese (CN) | Multiple | 18 Apr, 2023 | 5.7 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Italian | Multiple | 18 Apr, 2023 | 5.6 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Polish | Multiple | 27 Jul, 2023 | 5.8 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Turkish | Multiple | 27 Sept, 2023 | 5.8 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Ukrainian | Ukraine | 20 Sept, 2023 | 5.9 MB | |
| Data sheet | Indirect servo-operated solenoid valve | English | Multiple | 19 Jun, 2023 | 5.5 MB | |
| Data sheet | Indirect servo-operated solenoid valve | German | Multiple | 18 Apr, 2023 | 5.7 MB | |
| Data sheet | Indirect servo-operated solenoid valve | Spanish, Castilian | Multiple | 18 Apr, 2023 | 5.7 MB |
Approvals
Related products
-
if (isSmallPicture) {
EV220BW 40-50 is an indirect servo-operated 2/2-way solenoid designed for drinking water and available in NC or NO. Valve sealings are available in EPDM, and the valve body is available in brass.
-
if (isSmallPicture) {
The EV220BW 15-50 is an indirect servo-operated 2/2-way solenoid valve designed for drinking water and available in NC, NO, or UN-latching. Valve sealings are available in EPDM, and the valve body is available in ECO brass or stainless steel.
-
if (isSmallPicture) {

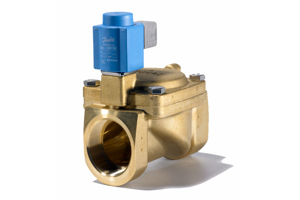

The EV220BW is an indirect servo-operated 2/2-way solenoid valve designed for drinking water and it is available in NC or NO. Valve sealings are available in EPDM, and the valve body in ECO brass or stainless steel. Wetted materials in accordance with 4MSI, DVGW, KTW – W270, and the valve program has RISE, SINTEF, WRAS, ACS and PZH approvals as well for cold and hot water applications.
-
