AB-PM Automatic balancing valves

Danfoss Automatic balancing valve AB-PM

Danfoss AB-PM combined automatic balancing valves ensures a reliable HVAC system with low total cost of ownership. The valve secures perfect balance at all loads by guaranteeing stable flow and differential pressure for each zone. At the same time an actuator can be added to allow individual control of each zone. This provides an exceptional solution in two main applications:

Residential buildings (Multi Family Housing) with two-pipe heating systems with distribution systems in front of each flat, such as manifolds for hydronic floor heating
Commercial buildings (Shell & Core) where the HVAC systems are established in stages or by different parties.

In case of residential applications, the AB-PM is mostly used in sizes DN10-32, ensuring hydronic balance for each flat e.g. in front of manifold for floor heating installations. The optional connection to a room temperature controller allow feature for each flat such as night setback or holiday mode.

In case of commercial HVAC applications, the AB-PM is mostly used in sizes DN 40-100. The automatic balancing valve can be used in shell & core buildings such as shopping malls or offices, ensuring a reliable heating system for the building owner and tenants. AB-PM is the ideal solution for such type of buildings as staged installation, handover and commissioning often occur. In such cases, the 1st stage is installation of backbone piping without terminal units (responsible building owner). The 2nd stage is the installation of terminal units in each zone (responsible tenant).

The AB-PM ensure the required flow for each zone and maintains the hydronic balance in the system in all conditions and for individual zones either with one or more terminal units.

Danfoss AB-PM in residential building with actuator

Features and benefits

Many features in one compact valve

Combined balancing valve for differential pressure control, flow limitation and zone control

Guarantees flow and Δp for each zone

Easy, fast and simple design process

Fast installation and easy setting

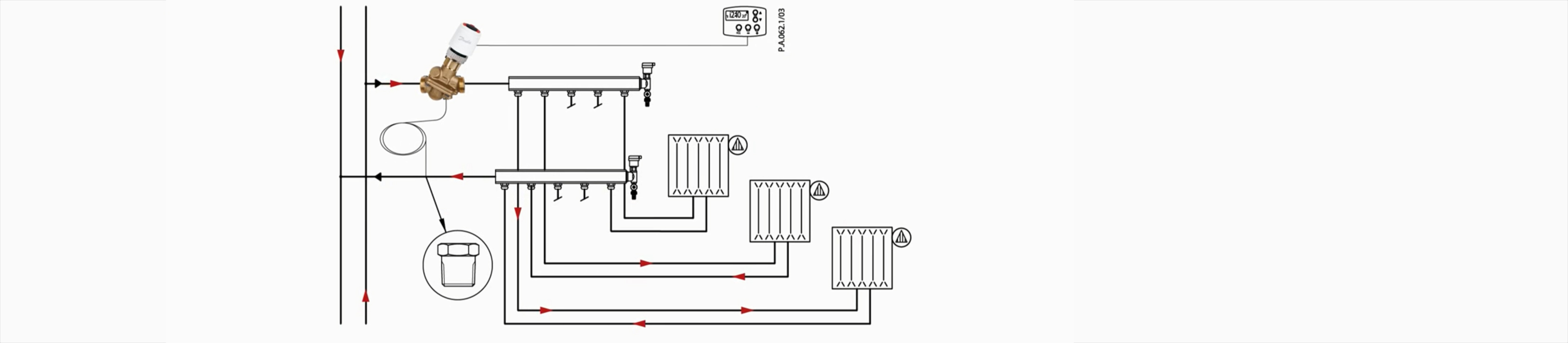

AB-PM animated instructions for small DN sizes

Watch animated instructions to see how to install AB-PM

Documents

Documents
Type	Name	Language	Valid for	Updated	Download	File type
Brochure	AB-PM - HVAC control for shell and core and base buildings	English	Multiple	13 Mar, 2018	629.4 KB	.pdf
Data sheet	AB-PM (DN 10-32)	English	Multiple	15 Jul, 2022	1.8 MB	.pdf
Data sheet	AB-PM (DN 40-100)	English	Multiple	07 Mar, 2018	1.8 MB	.pdf
Brochure	AB-PM brochure	English	Multiple	03 Sept, 2014	817.4 KB	.pdf
Data sheet	AB-PM Rack set DN 15-20, PN10	English	Multiple	30 Jul, 2017	1.2 MB	.pdf
Brochure	Hydronic Balancing & Control product overview	English	United Kingdom	11 Nov, 2014	7.1 MB	.pdf
Brochure	Hydronic Balancing & Control product overview	English	Multiple	12 Dec, 2016	1.1 MB	.pdf

Drawings

Drawings library

Open in MagiCloud

Software

Danfoss C.H. software

Our advanced Danfoss C.H. software will help you to design and calculate the perfect heating or cooling installation with Danfoss products.

Danfoss C.H. software

Related products

if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

Programmable room thermostat TP5001

TP5001 offers full heating control by being able to set two heating periods to ensure that the heating is either off, or at a reduced level when away or asleep
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

Programmable room thermostat TPOne

With Danfoss TPOne™, intelligent heating control is now easier than ever before. TPOne™ is ideal for virtually any domestic heating application with a boiler system, from single to multi-family houses.
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

AB-PM Automatic balancing valves

AB-PM is a combined balancing valve providing both differential pressure control and flow limitation. The valves eliminate pressure fluctuations at full load and partial load conditions and can be equipped with an actuator to allow zone control.
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

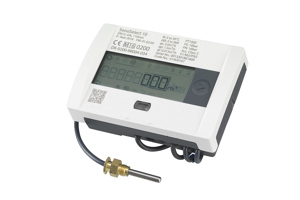

SonoSelect 10

SonoSelect™ is a compact ultrasonic meter for measuring energy consumption in heating, cooling and combined heating/cooling applications designed primarily for use in residential buildings. High flow measuring frequency (two times per second), robust housing and transducer design make it an excellent choice for flat stations with instantaneous hot water preparation.
if (isSmallPicture) { ; } else if (isBigColumns) { } else { }

Manifolds and actuators

Danfoss floor heating manifolds are characterized by their flexibility to establish the best suited manifold solution based on requirements. Select from all the components to construct a manifold with or without pre-setting, flow-meters, shut-off valves and air-vents that best fits your project.

Tender texts

AB-PM (DN10-32) – Combined Automatic Balancing Valve

Branch should be balanced with a differential pressure controller for dynamic hydronic balance, with following characteristics:

Valve should keep differential pressure across the branch by membrane driven controller.
Valve should have shut-off function.
Valve should have possibility to mount actuator.
Valve should have variable setting. Setting value should allow to set a combination of needed Dp and max flow limitation.
Setting should be lockable to prevent unauthorized change.
Valve should have metal to metal sealing to ensure sufficient performance of differential pressure control at low flows.
Shut-off service function should be possible to do by hand / without a tool.
Valve should be delivered with impulse tube. Diameter of impulse tube should not be bigger than 1.2 mm.
Valve should be delivered in reliable packaging for safe transport and handling.

Product characteristics:

Pressure class: PN 16
Temperature range: −10 … +120 °C.
Connection size: DN10-DN32
Connection type: External thread ISO 228/1
Valve body material: DZR brass
Installation: on flow pipe with connection via impulse tube to return pipe.

DN10-32:

Dp setting range: 5-15 kPa
Nom flow at 10 kPa: 110 l/h (DN10), 300 l/h (DN15), 600 l/h (DN20), 1200 l/h (DN25) and 2300 l/h (DN32)
Minimum Dp across valve and loop 18 kPa to ensure proper control
Max Dp at zero flow: 22 kPa
Max Dp across the valve: 4 bar

DN10-32 HP:

Dp setting range: 10-25 kPa
Nom flow at 20 kPa: 110 l/h (DN10), 300 l/h (DN15), 600 l/h (DN20), 1200 l/h (DN25) and 2300 l/h (DN32)
Minimum Dp across valve and loop 28 kPa to ensure proper control
Max Dp at zero flow: 35 kPa
Max Dp across the valve: 4 bar

AB-PM (DN40-100) - Combined Automatic Balancing Valve

AB-PM DN 40-100 is a combined differential pressure controller for dynamic hydronic balance.

The valve should be able to ensure hydronic balance for each zone with one or more terminal units.
Valve shall have flexible functionality as either DPCV or PIBCV.
The valve can be connected to either flow or return pipe via impulse tube
With impulse tube connected to flow, the valve should keep differential pressure across the branch by membrane driven controller.
With impulse tube connected to the return, the valve should control the flow on every terminal unit
Valve should have shut-off function.
Valve should have possibility to mount actuator.
Valve should have variable setting.
Setting value should allow to set a combination of needed differential pressure and flow for zone.
Setting should be lockable to prevent unauthorized change.
Control valve should have metal to metal sealing to ensure sufficient performance of differential pressure control at low flows.
Shut-off service function should be possible to do with hand or a tool. The Dp controller should have soft sealing to ensure sufficient closing in case of zero flow
Valve should be delivered with min. 2.5 m impulse tube. Diameter of impulse tube should not be bigger than 1.2 mm.
Valve should be delivered in reliable packaging for safe transport and handling.

Product characteristics:

Pressure class: PN16
Max. pressure drop across AB-PM: 4 bar
Temperature range: –10 … 120 °C
Connections size: DN 40-100
Connection type: External tread ISO 228/1 (DN 40, DN50), Flange EN1092-2 (DN 65-100)
Installation: in return pipe with connection via impulse tube to flow or return pipe
Setting range: Flow: 40-100%, Δp setting : 0-20 turns (DN40, DN50), 0-40 turns (DN65-DN100)
Nom. flow at factory setting (Δpr 25 kPa): 5000l/h (DN40), 6500 l/h (DN50), 16800 l/h (DN65), 19600 (DN80), 21000 (DN100)
Minimum differential pressure across valve and zone 42 kPa (DN40, DN50), 60 kPa (DN65-100)
